Description

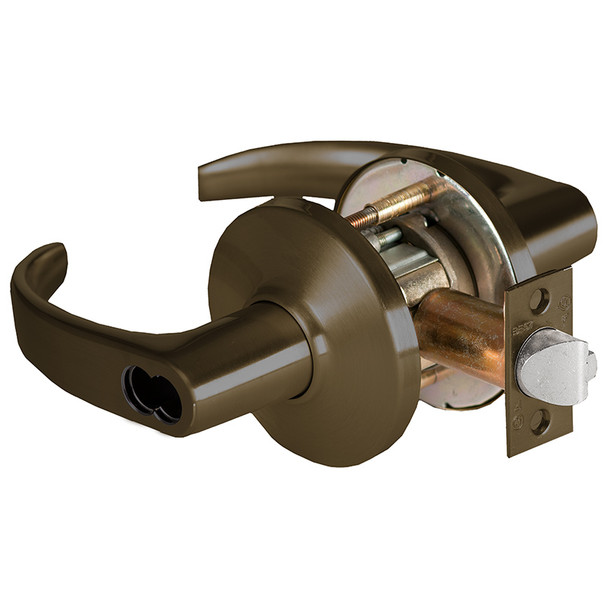

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built to withstand over 4 million cycles, it delivers superior security with low-maintenance design that protects critical components from daily wear and abuse, reducing your cost of ownership over time.
This lock features a pre-assembled hub design for quick 5-step installation, interchangeable cores for easy rekeying, and broad keyway options including non-IC and SFIC compatibility. Works on 1 3/8", 1 3/4", or 2 1/4" doors with standard or optional strike plates. Contact an authorized E.D. Locks dealer at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, masterkeying, and proper installation.
Specifications
- Grade: 1 (ANSI certified)
- Latch: Solid stainless steel, 9/16" throw
- Lever handles: Plated zinc alloy
- Trim: Brass or bronze
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/8", 1 3/4", or 2 1/4"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 1/4" and 5" available
- Keying: 6-pin non-IC brass, or 6/7-pin SFIC
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Strike: ANSI 2 3/4" standard; S3 4 7/8", S3 7/8" flat, 7/8" flat available
- Cycle rating: Over 4 million cycles, exceeds ANSI Grade 1 standard
