Description

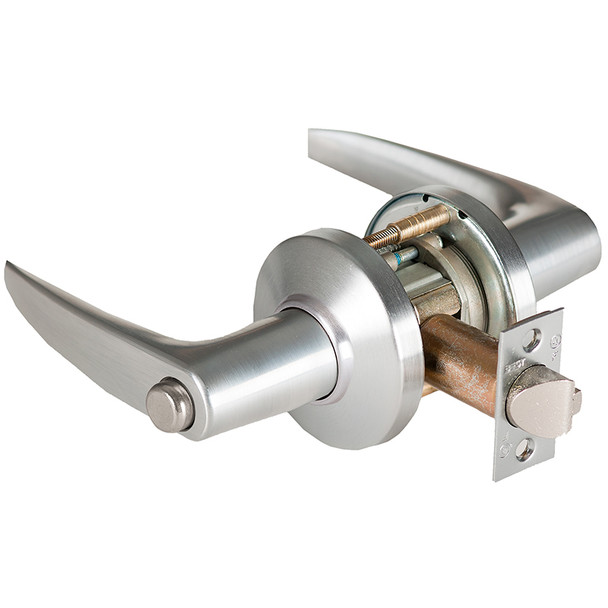

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built for durability and low maintenance, this lock solves the problem of frequent servicing and premature wear by featuring lever return springs that prevent sag and a pre-assembled hub design that minimizes maintenance needs over its lifetime.
The 9K40L16CSTK626 supports interchangeable cores for easy rekeying and masterkeying, and accepts multiple keyway options including Schlage, Yale, Sargent, Medeco and Corbin-Russwin. It fits 1 3/4" and 2 1/4" doors with standard 2 3/4" backset. Contact an E.D. Locks authorized dealer at sales@edlocks.com or 1-877-207-6067 for expert configuration guidance and keying assistance.
Specifications
- Grade 1 security rating, tested to over 4 million cycles
- Latch: solid stainless steel 9/16" throw, 2 1/4" and 1 1/8" beveled fronts
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike options: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat strike (STK)
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
- Keying: 6-pin non-IC brass cylinder; 6-pin or 7-pin SFIC option
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
