Description

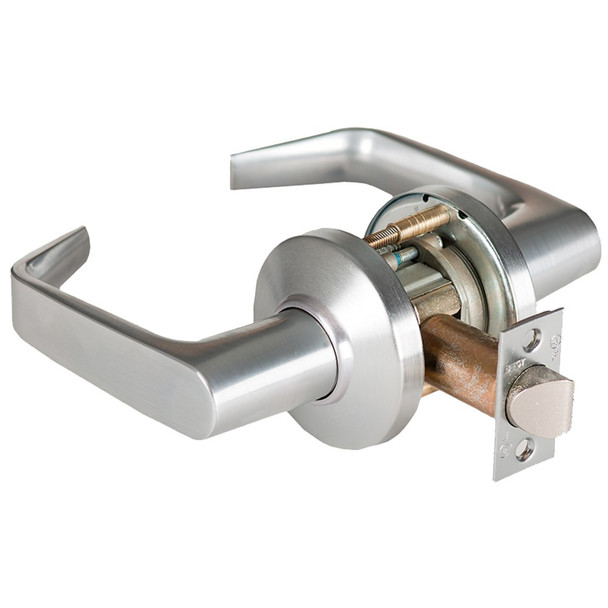

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built with a durable die-cast hub and solid stainless steel latch, it delivers superior security and low-maintenance operation. Ideal for facilities requiring reliable access control with minimal downtime and extended service life.
The 9K fits standard 2 1/8" cross-bore prep and accommodates 1 3/4" or 2 1/4" door thicknesses, with spacers available for 1 3/8" doors. BEST interchangeable cores enable quick rekeying and masterkeying flexibility across your facility. As an authorized BEST dealer, E.D. Locks provides expert installation guidance and keying support. Contact us at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Grade: 1
- Latch: Solid stainless steel, 9/16" throw
- Latch bevel: Front 2 1/4" and 1 1/8"
- Lever handles: Plated zinc alloy
- Trim finish: Satin chrome
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4" (spacers for 1 3/8")
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard (3 1/4" and 5" available)
- Strike: ANSI 2 3/4" standard (ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat available)
- Cylinder: 6-pin non-IC brass or 6-7 pin SFIC
- Keyway options: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
- Cycle rating: Over 4 million cycles (exceeds ANSI Grade 1)
