Description

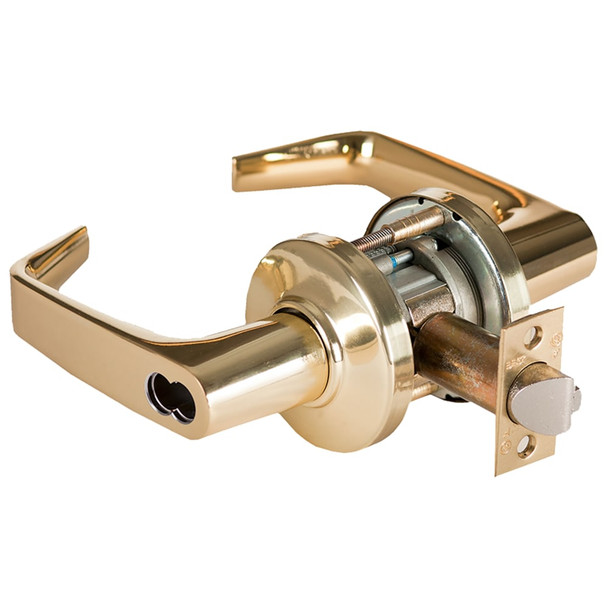

The BEST 9K47D15CS3605 is a Grade 1 cylindrical lock engineered for commercial and institutional doors requiring maximum durability and low maintenance. Built for high-traffic entries, it solves the problem of lever sag and premature wear with internal lever return springs and a robust die-cast hub design that withstands over 4 million cycles.
This lock accepts BEST interchangeable cores (6-pin non-IC or SFIC) for quick rekeying and custom masterkeying. It fits 1 3/4" or 2 1/4" doors with a 2 1/8" cross bore and 2 3/4" backset (other backsets available). As an authorized BEST dealer, E.D. Locks provides expert keying guidance and installation support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Latch: solid stainless steel, 9/16" throw; front 2 1/4" and 1 1/8" beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike (STK) available
- Chassis: zinc alloy and corrosion-treated steel; 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
- Keying: 6-pin non-IC brass cylinder; 6- or 7-pin SFIC option available
- Keyway options: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
