Description

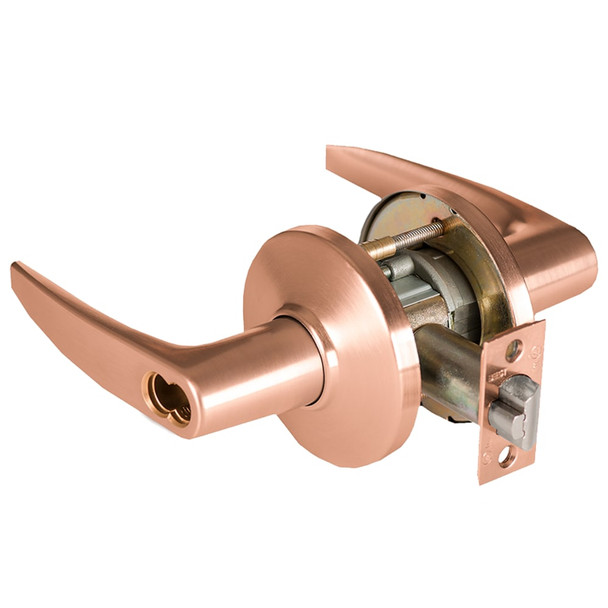

The BEST 9K47D16DS is a Grade 1 cylindrical lock engineered for commercial and institutional doors requiring dependable security and minimal maintenance. Built with a durable die-cast hub and solid stainless steel latch, it solves the ownership cost problem by resisting lever sag and requiring significantly less upkeep than standard locks over its lifetime.
This lock accepts both non-interchangeable core (6-pin brass) and SFIC (interchangeable core) cylinders in multiple keyways including Schlage, Corbin-Russwin, Medeco, Sargent, and Yale. Available for 1 3/4" or 2 1/4" door thickness with standard 2 3/4" backset and ANSI 2 3/4" strike. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying assistance and fast shipping on authorized BEST products.
Specifications
- Grade: 1 (ANSI tested to over 4 million cycles)
- Latch: Solid stainless steel, 9/16" throw
- Latch front: 2 1/4" and 1 1/8" beveled
- Lever handles: Plated zinc alloy
- Trim: Brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat available
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 1/2" and 5" available
- Cylinder: 6-pin non-IC brass or 6/7-pin SFIC
- Keyways: LFIC (SCHRC-Schlage), Non-IC (COR, MED, SAR, SCH, YAL)
