Description

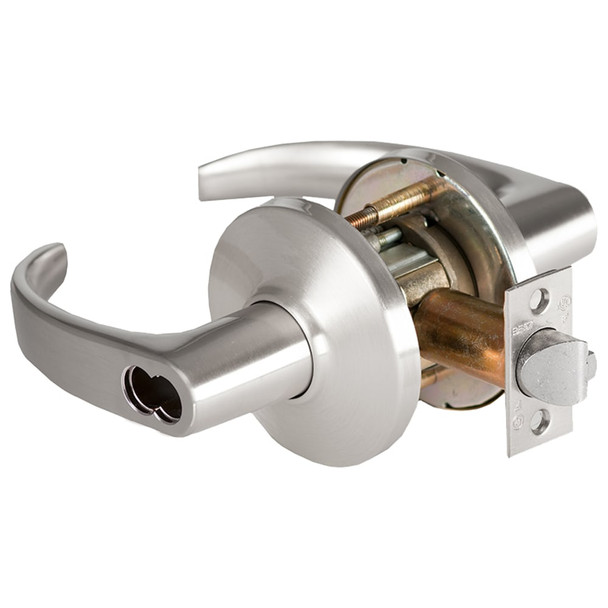

The BEST 9K47R14DSTK is a Grade 1 cylindrical lock engineered for high-traffic commercial and institutional doors requiring proven durability and low maintenance. Tested to over 4 million cycles, it solves the problem of frequent repairs and downtime by delivering superior security with lever return springs that prevent sag and minimize maintenance needs over the lock's lifetime.
This lock fits 1 3/4" and 2 1/4" doors with 2 1/8" cross bore and 2 3/4" backset (3 1/2" and 5" available). It features quick interchangeable core keying and is compatible with multiple keyways including Schlage, Yale, Medeco, and Corbin-Russwin. As an authorized BEST dealer, E.D. Locks provides expert guidance on keying options and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right configuration for your application.
Specifications
- Grade 1 Security Rating
- Latch: solid stainless steel 9/16" throw, 2 1/4" and 1 1/8" beveled front
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, and 7/8" flat strike available
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 1/2" and 5" available
- Keying: 6-pin non-IC brass cylinder or 6- to 7-pin SFIC option
- Keyway options: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
- Tested to over 4 million cycles, exceeds ANSI Grade 1 standards and Grade 1 abusive locked lever torque
