Description

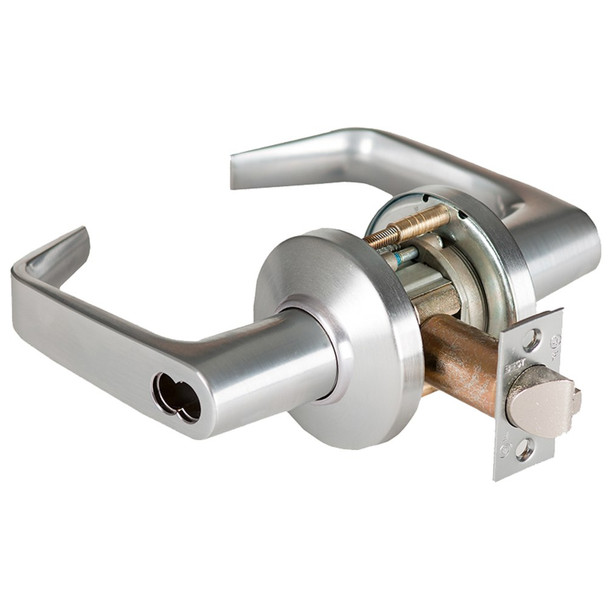

The BEST 9K is a Grade 1 cylindrical lock engineered for demanding commercial and institutional applications. Built to withstand over 4 million cycles, it delivers superior security and durability with a low-maintenance design that protects critical components from daily wear and abuse. The interchangeable core system allows quick rekeying and customized masterkeying.
This lock accommodates 1 3/4" and 2 1/4" door thicknesses with a standard 2 3/4" backset and 2 1/8" cross bore. It accepts 6-pin non-IC cylinders or optional 6/7-pin SFIC options in multiple keyways including Schlage, Yale, Medeco, and Sargent. As an authorized BEST dealer, E.D. Locks provides expert guidance on keying, masterkeying, and installation. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Grade: 1
- Latch: solid stainless steel, 9/16" throw
- Front: 2 1/4" and 1 1/8" beveled
- Lever handles: plated zinc alloy
- Trim: brass or bronze
- Strike: ANSI 2 3/4" standard; ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat strike (STK) available
- Chassis: zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4"; spacers available for 1 3/8"
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard; 3 2/4" and 5" available
- Keying: 6-pin non-IC brass cylinder or 6/7-pin SFIC option
- Keyways: LFIC (SCHRC-Schlage), Non-IC (COR-Corbin-Russwin, MED-Medeco, SAR-Sargent, SCH-Schlage, YAL-Yale)
