Description

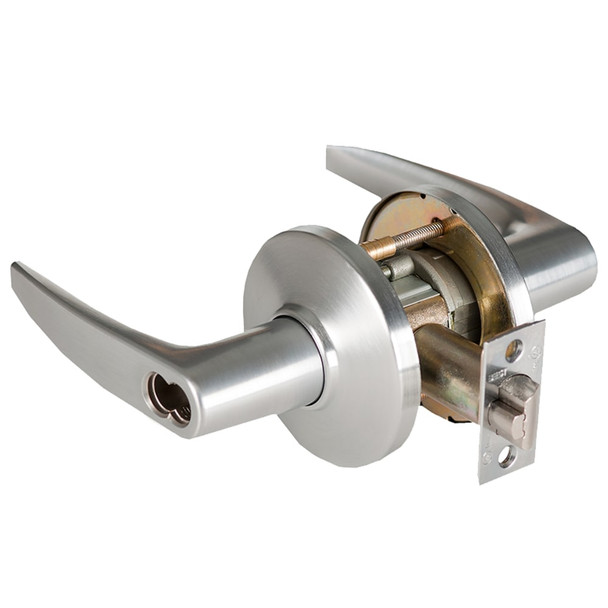

The BEST 9K47T16DS is a Grade 1 cylindrical lock built for demanding commercial and institutional applications. Engineered for durability and low maintenance, it solves the problem of frequent lock failures and costly downtime by delivering proven security and reliable performance through millions of use cycles, even in high-abuse environments.
This lock works with standard 2 1/8" cross-bore door prep and offers both non-interchangeable and interchangeable core (SFIC) keying options, including Schlage, Yale, Medeco, Sargent and Corbin-Russwin keyways. As an authorized BEST dealer, E.D. Locks provides expert guidance on configuration and installation. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for assistance selecting the right keying and finish for your security needs.
Specifications
- Grade: ANSI Grade 1
- Latch: Solid stainless steel, 9/16" throw
- Latch faces: Front 2 1/4" and 1 1/8" beveled
- Lever handles: Plated zinc alloy
- Trim: Brass or bronze
- Strike: ANSI 2 3/4" standard (ANSI S3 4 7/8", ANSI S3 7/8" flat, 7/8" flat available)
- Chassis: Zinc alloy and corrosion-treated steel, 2 1/16" diameter
- Door thickness: 1 3/4" or 2 1/4" (spacers available for 1 3/8")
- Door prep: 2 1/8" diameter cross bore
- Backset: 2 3/4" standard (3 1/2" and 5" available)
- Keying: 6-pin non-IC brass cylinder, 6- or 7-pin SFIC option
- Keyway options: LFIC (Schlage), Non-IC (Corbin-Russwin, Medeco, Sargent, Schlage, Yale)
- Cycle rating: Over 4 million cycles (exceeds ANSI Grade 1)
