Description

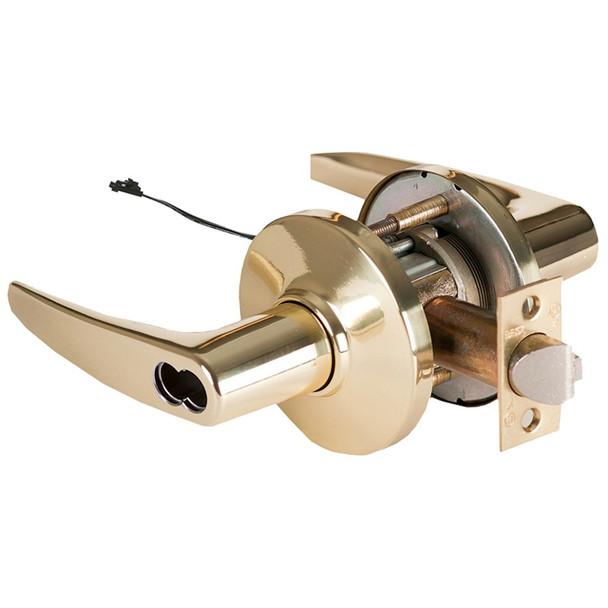

The BEST 9KW37DEU16DS3605 is a Grade 1 cylindrical lock designed for commercial and institutional doors. It solves security and durability needs on 3-hour fire-rated single swinging doors up to 4' x 10', meeting ANSI A156.2 Series 4000 standards and UL listings for demanding entry control applications.
This lock fits standard 2 1/8" preparation holes in doors 1 3/4" to 2 1/4" thick, with 2 3/4" backset standard (3 3/4" and 5" available). It includes your choice of brass, bronze, or stainless steel strike and internal corrosion-resistant materials. Contact our expert team at sales@edlocks.com or 1-877-207-6067 for keying options, Miami-Dade County approval details, and installation guidance from an authorized BEST dealer.
Specifications
- UL Listed: 3 Hr, A label single swinging doors (4' x 10')
- ANSI A156.2 Series 4000 Grade 1
- Miami-Dade County Product Control Approved (with WS option)
- Door Thickness: 1 3/4" - 2 1/4"
- Chassis: 2 1/6" diameter, fits 2 1/8" hole
- Backset: 2 3/4" standard, 3 3/4" and 5" available
- Latchbolt: 9/16" standard (3/4" throw optional)
- Strike: 2 3/4" x 1 1/8" x 3/32" or ANSI 4 7/8" x 1 1/4" x 3/32"
- Trim Materials: Brass or bronze
- Internal Components: Brass, bronze, zinc alloy, or corrosion-treated steel
