Description

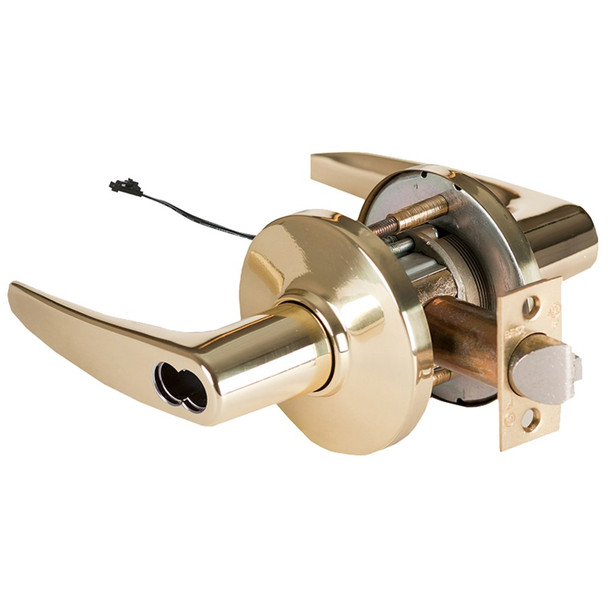

The BEST 9KW47DEU16DS3605 is a UL-listed Grade 1 cylindrical lock engineered for commercial and institutional single-swing doors up to 4 feet wide and 10 feet tall. It meets ANSI A156.2 Series 4000 standards and solves the need for reliable, code-compliant security on 3-hour fire-rated doors in demanding environments, including Miami-Dade County jurisdictions.
This lock fits standard 2 1/8-inch bore holes in 1 3/4-inch to 2 1/4-inch thick doors and is available with multiple backset options (2 3/4-inch standard, plus 3 3/4-inch and 5-inch). Material choices include brass, bronze, zinc alloy, and corrosion-treated steel internals. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for keying, finish selection, and compliance guidance.
Specifications
- Brand: BEST
- Model: 9KW47DEU16DS3605
- UL Listed: 3-hour, A-label single swinging doors (4' x 10')
- Standard: ANSI A156.2 Series 4000 Grade 1
- Door Thickness: 1 3/4 inch to 2 1/4 inch
- Backset: 2 3/4 inch standard (3 3/4 inch and 5 inch available)
- Latchbolt: 9/16 inch (3/4 inch throw optional)
- Chassis Diameter: 2 1/6 inch (fits 2 1/8 inch door bore)
- Trim Materials: Brass or bronze
- Internal Components: Brass, bronze, zinc alloy, or corrosion-treated steel
- Strike: Brass, bronze, or stainless steel (standard 2 3/4 inch x 1 1/8 inch x 3/32 inch or ANSI 4 7/8 inch x 1 1/4 inch x 3/32 inch)
- Miami-Dade County: Product control approved (with WS option)
