Description

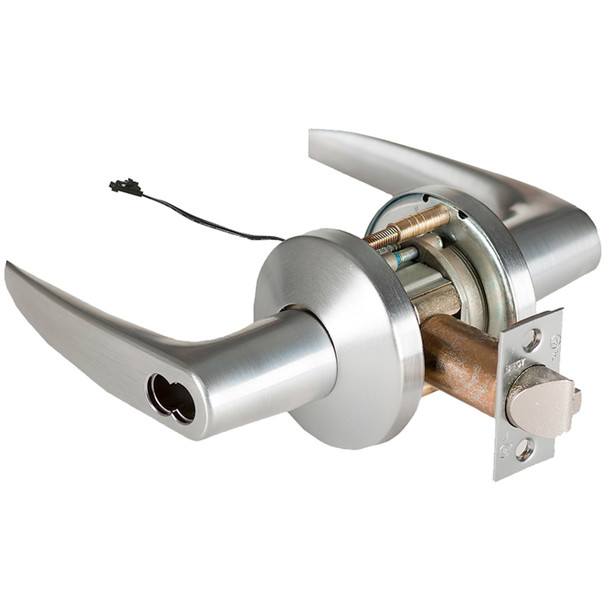

The BEST 9KW47DEU16KS3626 is a Grade 1 cylindrical lock designed for commercial and institutional single swinging doors. UL Listed for 3-hour fire-rated doors up to 4'x10', it meets ANSI A156.2 Series 4000 standards and solves security needs for high-traffic entryways while maintaining code compliance and Miami-Dade County product control approval.
Compatible with standard 1 3/4" to 2 1/4" door thickness, this lock installs in 2 1/8" pre-drilled holes with your choice of 2 3/4", 3 3/4", or 5" backset. Order the optional "WS" designation for Miami-Dade labeling. E.D. Locks & Security provides expert guidance on keying and installation; contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: BEST
- Model: 9KW47DEU16KS3626
- UL Listed: 3-hour fire-rated doors, 4'x10' maximum
- Standard: ANSI A156.2 Series 4000 Grade 1
- Door Thickness: 1 3/4" to 2 1/4"
- Chassis Diameter: 2 1/6" (fits 2 1/8" door hole)
- Backset Options: 2 3/4" standard, 3 3/4", 5" available
- Latchbolt: 9/16" standard (3/4" throw optional)
- Trim Materials: Brass or bronze
- Internal Components: Brass, bronze, zinc alloy, or corrosion-treated steel
- Strike Options: Brass, bronze, or stainless steel; 2 3/4" x 1 1/8" x 3/32" or ANSI 4 7/8" x 1 1/4" x 3/32"
- Miami-Dade County: Product control approved (WS option required for label)
