Description

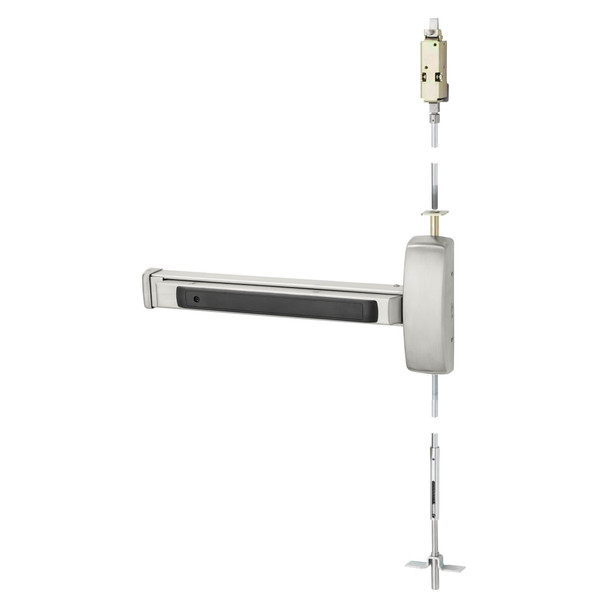

The Sargent 80 Series AD8646E is a heavy-duty exit device designed for metal doors in commercial and institutional facilities. This rim-mounted panic bar exceeds ANSI/BHMA Grade 1 requirements and features modular construction with minimal moving parts, making it ideal for buildings requiring maximum security and durability with minimal maintenance.
Compatible with metal doors 1.75 inches minimum thickness, this device mounts to 4-32 inch door widths (E Rail) and includes a 650 top strike and 606 bottom strike rated for fire-rated applications. Hex key dogging is standard. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for sizing guidance, electric options, and professional installation support.
Specifications
- Brand: Sargent
- Series: 80 Series
- Model: AD8646E ETB LHR 32D
- Configuration: Rim-mounted exit device
- Door Compatibility: Metal doors, 1.75 inch minimum thickness
- Rail Size: E Rail (24-32 inch door widths, no cutting required at 32 inch)
- Minimum Stile Width: 4.5 inches
- Strikes: 650 Top Strike and 606 Bottom Strike (panic and fire-rated)
- Top Bolt: Stainless steel
- Device Centerline Height: 41 inches (standard), 38 inches (elementary schools/accessibility)
- Maximum Door Height: 96 inches
- Maximum Door Opening Height: 120 inches
- Center Case Dimensions: 8.375 inches x 2.625 inches
- Pushbar Projection (Neutral): 3 inches
- Pushbar Projection (Depressed): 2.125 inches
- Dogging: Hex key dogging standard (non fire-rated devices)
- Fasteners: Machine screws supplied
- Standards: Exceeds ANSI/BHMA Grade 1
