Description

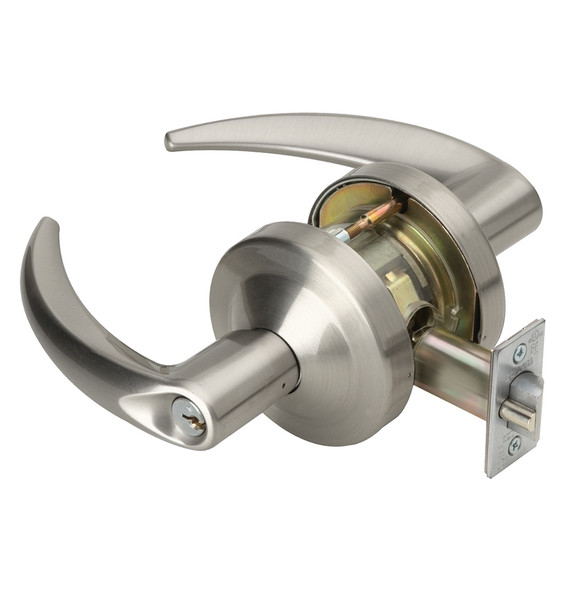

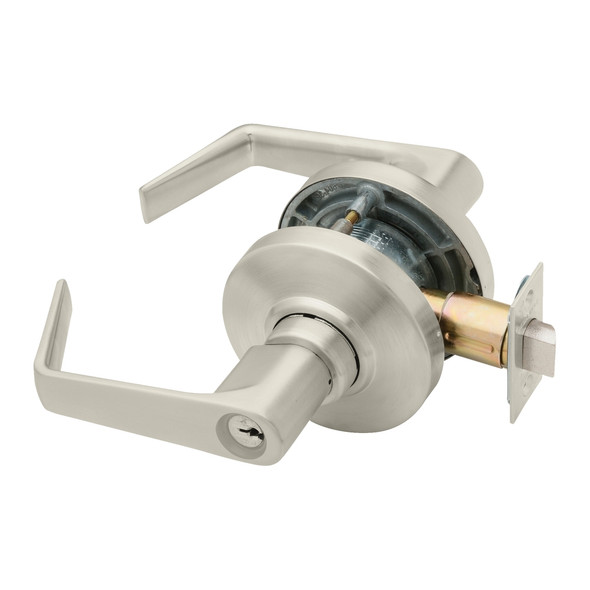

The Schlage AL50PD is a Grade 2 commercial lever lock built for medium to high-traffic applications in offices, banks, retail spaces, and hotels. Non-handed design with ADA-compliant accessibility delivers dependable performance where constant reliability matters. Steel construction with brass latch bolt and zinc dichromated chassis ensures durability in demanding environments.
Fits standard door thickness 1 3/8" to 1 7/8" with 2 3/4" backset (other sizes available). Includes 6-pin Everest 29 S123 keyway with two nickel silver keys and supports master keying, grand master keying, and interchangeable core options. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for keying setup assistance and expert guidance on your project.
Specifications
- Grade: 2
- Handing: Non-handed
- Door Thickness: 1 3/8" to 1 7/8" standard (35 mm to 48 mm); 2" (51 mm) optional
- Backset: 2 3/4" (70 mm) standard; 2 3/8" (60 mm), 3 3/4" (95 mm), 5" (127 mm) optional
- Front: Steel, 2 1/4" x 1 1/8" square corner beveled for standard backset
- Lock Chassis: Steel, zinc dichromated
- Latch Bolt: Brass, chrome plated, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver per lock
- Strike: ANSI curved lip 4 7/8" x 1 1/4" x 1 1/4" standard
- Keying Options: Master keying, grand master keying, construction keying, interchangeable core, Primus high security
- Warranty: Three-year limited
