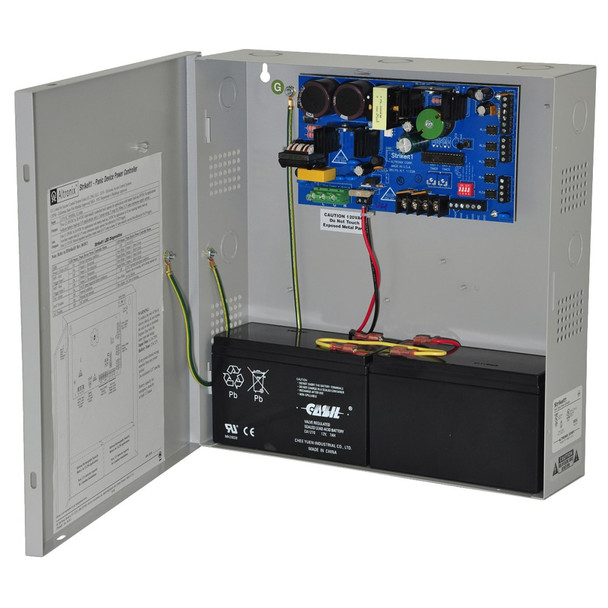

STRIKEIT1 Altronix Power Supply

Pabic Device Power Controller, 115VAC 60Hz at 6.3A Input, Multiple Output Power Options, Grey Enclosure

• Finish:
• Series: Altronix Power Supplies
• Type: Power Supplies and Transformers
• Sub Type: Power Supply

STRIKEIT1 will operate up to two (2) 24VDC panic hardware devices simultaneously. It is designed to handle the high current surge panic hardware locking devices demand. Each lock output has an adjustable relock delay timer. It will control a pair of doors simultaneously or independently control two individual doors. It has a follower relay for each output to trigger external relays, ADA push plate switches, etc. Delayed follower relays control automatic door operators for doors that are always locked or for doors that are unlocked during the business day. In addition, two un-switched auxiliary voltage outputs are provided for powering card readers, keypads, REX PIRs, electronic timers, relays, etc. A configurable FACP interface will either provide power or remove power to the lock outputs when activated. LED status indicators are provided to monitor AC power, FACP status and for lock output wiring supervision. Intelligent logic provides protection against accidental shorting of lock outputs.

Altronix has a wide range of Power Supplies to fit any application.
