Description

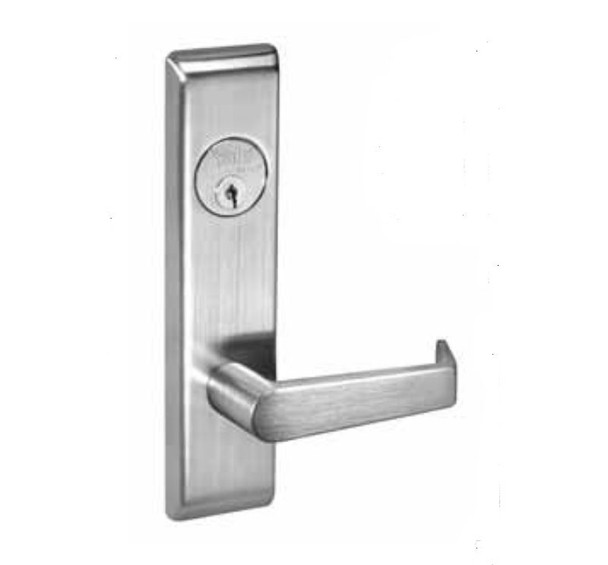

The Yale 8860FL 606 is a commercial-grade mortise lock built for high-security applications requiring ANSI/BHMA Grade 1 certification. Ideal for office buildings, hospitals, and institutional facilities, this lock combines a reinforced stainless steel deadbolt with vandal-resistant trim to protect against forced entry and everyday wear.
Field-reversible handing and quick lever installation simplify setup for most 1-3/4" standard doors. UL/cUL fire-rated up to 3 hours and windstorm-certified for enhanced safety compliance. As an authorized Yale dealer, E.D. Locks provides expert guidance on finish selection, keying options, and custom configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Certification: ANSI/BHMA A156.13 Series 1000, Grade 1
- Fire Rating: UL/cUL up to 3 hours
- Deadbolt: Reinforced stainless steel
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door Thickness: 1-3/4" standard (up to 3-1/4" available)
- Cylinders: Brass, 6-pin keyed-random (7-pin available)
- Keys Included: Two per lock
- Front: Bevel front, free-floating adjustment
- Strike: 1-1/4" curved lip for 1-3/4" door (other lengths available)
- Reversibility: Field reversible handing
- Finishes: 17 options available
- Warranty: 10 years mechanical
