Description

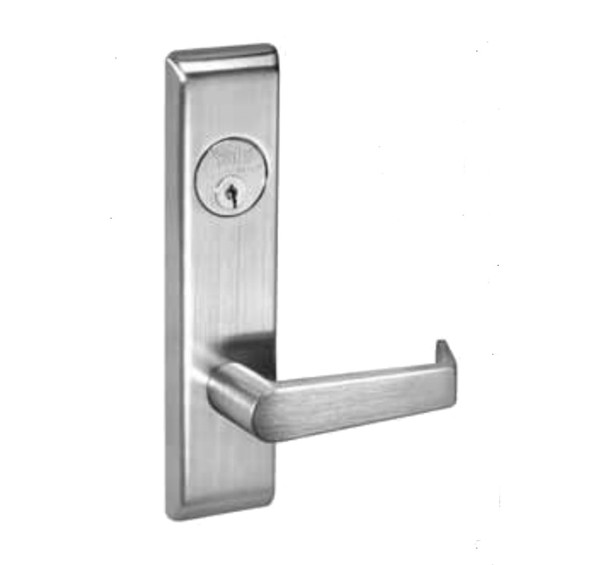

The Yale 8800 Series mortise lock (model AUCN8867FL) delivers Grade 1 security for commercial doors. Designed for offices, schools, and institutional buildings, this lock combines a reinforced stainless steel deadbolt with vandal-resistant trim to withstand heavy traffic and tampering. Field-reversible handing and quick lever setup reduce installation time and labor costs.
Compatible with standard 1-3/4" doors and adjustable to 3-1/4" thick doors by special order. The lock features a 6-pin keyed-random cylinder (two keys included), 3/4" stainless steel latchbolt, and UL/cUL fire rating up to 3 hours. As an authorized Yale dealer, E.D. Locks provides expert guidance on keying options, custom backsets, and finish selection. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- ANSI/BHMA Grade 1 certified to A156.13 Series 1000
- Backset: 2-3/4"
- Latchbolt: 3/4" stainless steel throw
- Door thickness: 1-3/4" standard (to 3-1/4" by special order)
- Cylinder: 6-pin brass, keyed-random with 2 keys
- Strike: 1-1/4" curved lip, reversible
- Mechanism: Stainless steel
- UL/cUL fire rated up to 3 hours
- Windstorm certified
- Field reversible handing
- 10-year mechanical warranty
