Description
The Yale 8800 Series mortise lock is a heavy-duty commercial lock designed for doors requiring ANSI/BHMA Grade 1 strength and reliability. Built with reinforced stainless steel deadbolts and vandal-resistant trim, it solves security concerns in high-traffic commercial applications while offering field-reversible installation for flexibility and cost savings.

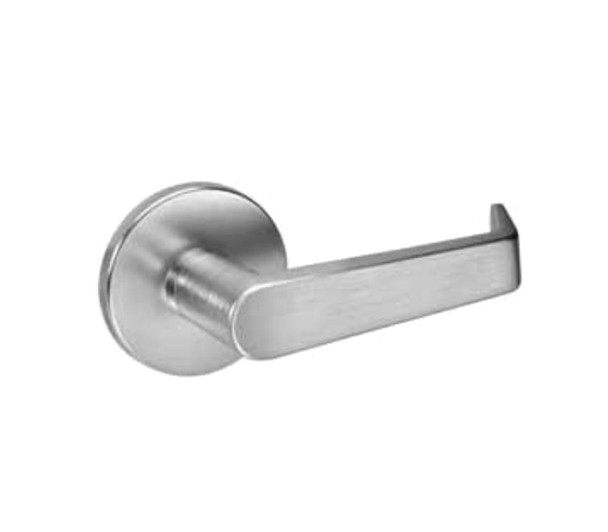

This trim pack fits 1-3/4" standard door thickness with a 2-3/4" backset and includes a 6-pin keyed-random cylinder with two keys. UL/cUL fire-rated up to 3 hours and windstorm certified. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for finish selection guidance, keying options, and authorized dealer support.
Specifications
- ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
- UL/cUL: Fire rated up to 3 hours
- Mechanism: Stainless steel
- Backset: 2-3/4 inches
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard, to 3-1/4 inch thick doors to order
- Cylinders: Brass, 6-pin keyed-random with two keys standard, 7-pin available
- Reversibility: Field reversible handing
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch door standard, reversible
- Finishes: Available in 17 finishes
- Warranty: 10 year mechanical
