Description

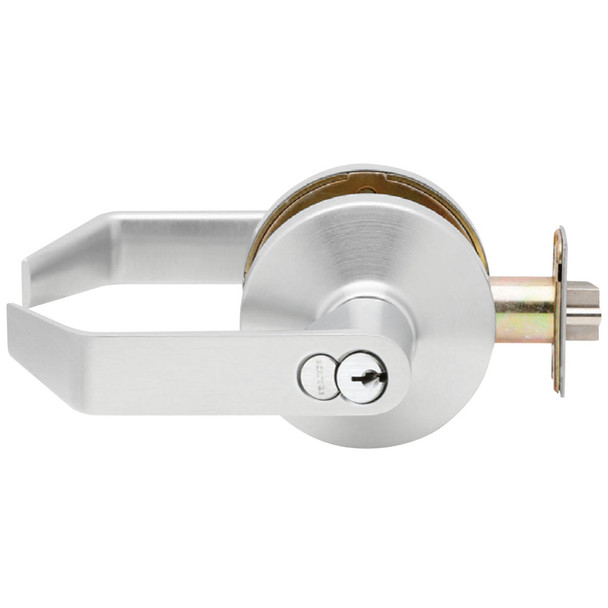

The Falcon B511HD D 626 is a Grade 2 cylindrical lockset built for government, military, retail, industrial and multi-family applications where durability and reliability matter. Its interchangeable core design enables quick re-keying without removing the lock from the door, saving time and labor on maintenance and key changes.
This lock is SFIC-compatible with other manufacturers' products and fits standard door thicknesses of 1 3/8 to 2 inches with 2 3/4 inch backset (2 3/8 inch also available). Brass and cold-formed steel components are zinc-plated and dichromated for rust resistance. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and to discuss your project requirements.
Specifications
- Door Thickness: 1 3/8 to 2 inches standard
- Backset: 2 3/4 inches standard, 2 3/8 inches available
- Mechanism: Brass or cold-formed steel, zinc-plated and dichromated; stainless steel springs
- Attachment: Two screws through steel rose insert into outer rose assembly
- Handing: Non-handed
- Cylinders: 6-pin chambers, pinned in 5 (6-pin pinning available at no charge)
- Cylinder Housing: Solid brass with phosphor bronze springs
- Keys: Two nickel silver keys furnished standard
