Description

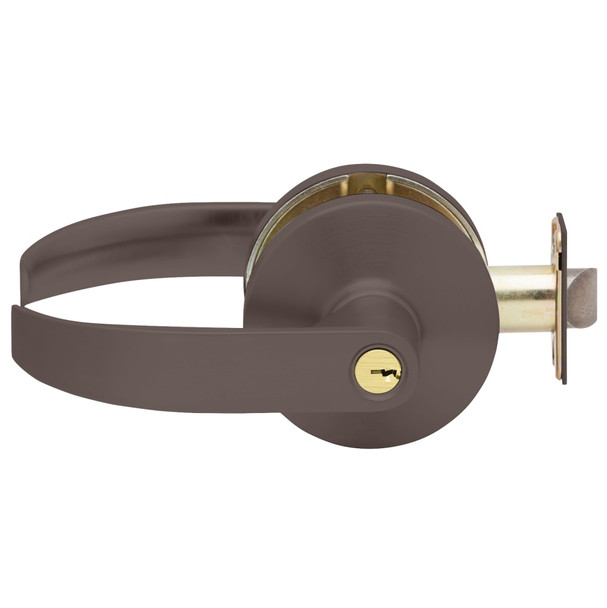

The Falcon B561PD Q 613 is a Grade 2 cylindrical lockset designed for government, military, retail, industrial and multi-family applications. This durable lock combines reliable security with quick re-keying capability through its interchangeable core design. It solves the need for cost-effective, upgradeable security in new construction and retrofit projects.
The B561PD Q 613 fits standard door thickness of 1 3/8" to 2" with a 2 3/4" backset (2 3/8" available). It uses 6-pin chambers and includes removable cylinder assemblies for easy re-keying. SFIC compatible with other manufacturers' products. For expert guidance on configuration, keying, and installation, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: 2
- Door Thickness: 1 3/8" to 2" standard
- Backset: 2 3/4" standard, 2 3/8" available
- Mechanism: Brass or cold formed steel, zinc plated and dichromated, stainless steel springs
- Attachment: Two steel screws through rose insert into outer rose
- Handing: Non-handed
- Cylinders: 6-pin chambers, pinned in 5 (6-pin available at no cost)
- Core Type: Removable interchangeable core, SFIC compatible
- Cylinder Material: Solid brass housings and plugs, phosphor bronze springs
- Keys: Two nickel silver keys standard
