Description

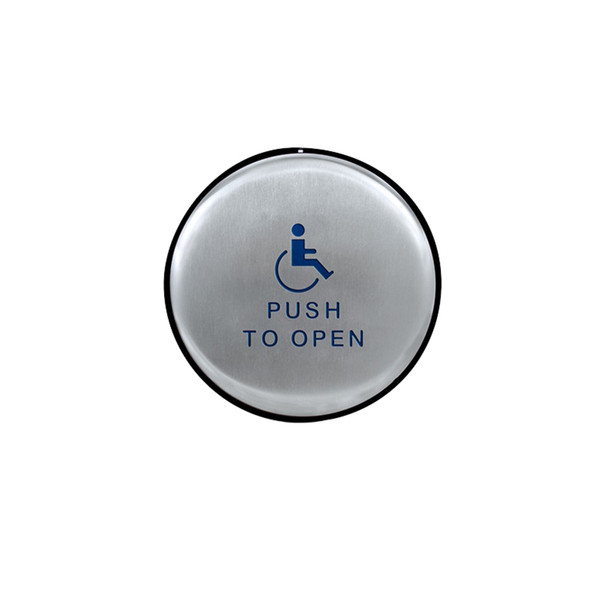

BEA’s Panther push plate family consists of easy to mount, wireless, 4.75 inch round, 6 inch round and 4.75 inch square style push plates. These plates include an integrated 433 MHz wireless transmitter. Panther plates are weather-resistant, NEMA 4 rated devices, which allows them to be installed in any pedestrian or industrial environment. Capable of surface mount installation, ideal for concrete walls and other applications where it may be difficult to mount a standard push plate.
Features and Benefits
- 1/16 inch thick stainless steel for maximum durability
- Completely eliminates the need to run power and/or relay wires
- Concealed fasteners to minimize vandalism
- Built-in mounting box eliminates the need for additional hardware accessories
- The housing can be directly installed onto any flat surface using standard screws
- Integrated 433 MHz transmitter
- NEMA 4, weather-proof housing
Specifications
- Dimensions (Ø × D): 6.29 in × 1.45 in
- Mounting: Any flat surface
- Transmitter: Type Encrypted Rolling Code
- Transmitter Frequency: 433 MHz
- Power Source: 12 V Type A23 (included)
- Finish: 16 Gauge, 304 2B Stainless Steel
- Degree of Protection: NEMA 4 / IP65 FCC IC Part 15 Approved
