Description
The DormaKaba C76/001-000 is a heavy-duty commercial Grade 1 back plate and cylindrical drive unit designed for E203x exit device construction. Built with solid cast exterior housing and levers, this non-handed lockset solves security and durability challenges in high-traffic indoor and outdoor applications requiring reliable access control.
This pre-assembled unit fits 2¾" or 2⅜" cylindrical backsets and includes standard ANSI strikes for quick installation. It accepts Kaba 1539 6-pin cylinders in Schlage C keyway and supports small-format interchangeable cores. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for handing changes, keying assistance, or compatibility questions.
Specifications
- Grade: 1 (Commercial)
- Handing: Non-handed, pre-assembled for left-hand installation; field-changeable
- Cylindrical Backset: 2¾" (70 mm) or 2⅜" (60 mm)
- Mortise Backset: 2¾" (70 mm)
- Latch Throw: ½" (13 mm) or ¾" (19 mm) optional (Cylindrical); ¾" (19 mm) or 1" (25 mm) optional (Mortise)

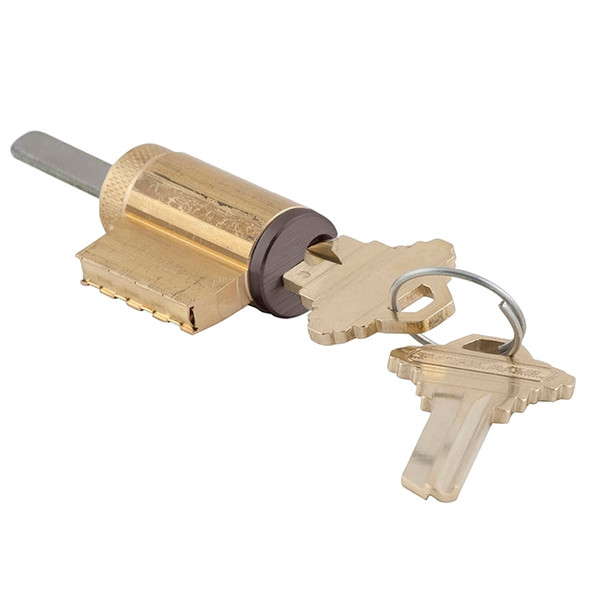

- Cylinder: Kaba 1539 6-pin, Schlage C Keyway
- Interchangeable Core: Small format (6 or 7-pin), cylinder not included
- Strikes Included: ANSI A115.3 T Strike and A115.2 ASA Strike
- Minimum Stile: 5" (127 mm)
- Construction: Solid cast exterior housing and levers
