Description
CM-120 Series keypads lead the industry in performance and value. ADA compliant and built to last, these rugged and versatile keypads feature stainless steel faceplates, single gang flush mounting (enclosures are available for surface mount), 12/24 VAC/DC operation and a complete range of programming features.
Features
- DIGITAL KEYPADS PROVIDE AUDIBLE AND VISUAL ANNUNCIATION/CONFIRMATION
- 12/24V, AC/DC OPERATION
- 999 USERS, 10 MILLION POSSIBLE CODES
- VARIABLE OR FIXED LENGTH 1 TO 8 DIGIT CODES
- (2) 3 AMP FORM 'C' RELAYS
- INDEPENDENT RELAY CONTROL
- FLUSH MOUNT SINGLE GANG STAINLESS STEEL FACEPLATE
- 3 LED'S + PIEZO BUZZER
- 1-255 SECOND TIME DELAY
- REQUEST TO EXIT (REX) INPUT
- DOOR CONTACT INPUT FOR ANTI-TAILGATING & DOOR OPEN ALARM
- GLOBAL LOCK-OUT FEATURE
- ON-VOLATILE EEPROM MEMORY
- INCLUDES TAMPERPROOF SCREWS AND DRIVER
Application

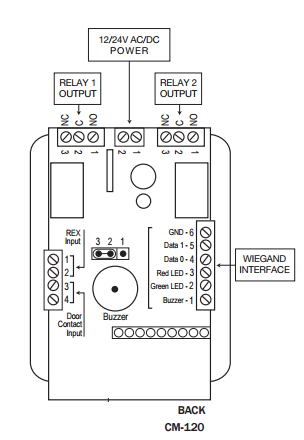

Camden Door Controls CM-120 Series selectable stand-alone or wiegand digital keypads are ideal for virtually any indoor or outdoor application where control of electrically locked doors (with electric locks, magnetic locks or electric strikes) is required. These keypads may also be used for activating/deactivating machinery or equipment. Applications including storage closets, recreation centers, safe rooms, self-storage facilities, pools/saunas, restaurant freezers and computer rooms. The second relay can be programmed as an alarm output, door operator relay, or to activate only with certain pin codes. On board full wiegand termination with variable protocols allows connection to most access control systems increasing the versatility of this keypad. Use of the keypad in wiegand mode disables the wired relay outputs, as well as REX and door contact inputs. Optional plug-in 2 channel transmitter provides wireless transmission of signals in addition to wired relay outputs.
Specifications
| Voltage: | 12/24 V AC/DC |
| Mounting: | Single gang, flush (2) #6 machine and tamper proof screws |
| Current Draw: | 30 MA Standby, 90 MA Max |
| Input: | 1 x Rex Input / 1 x Door Contact Input |
| Contact Type: | 2 x Form C |
| Contact Rating: | 3 AMPS @ 24 VDC |
| Capacity: | 999 User Codes |
| Length: | Variable, Up to 8 Digits (10 Million Possible Codes) |
| Response Time: | 0.3 Seconds |
| Time Delay: | 1 to 255 Seconds, or Latched |
| Temp Range: | -40°F to + 185°F (-40°C to +85°C) |
| Dimensions: | 4 1/2" x 2 3/4" x 3/4" (114 mm x 70 mm x 19 mm) |
| RF Output: | Optional Plug-In Transmitter, 2 Channel |
Model Available:
| CM-120i |  | Stand alone or Wiegand, flush mount, 999 users, 12/24V AC/DC |
