Description

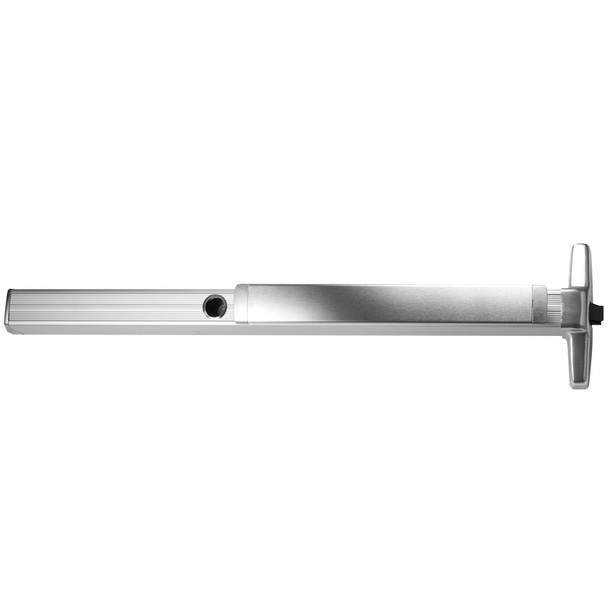

The Von Duprin CD33AEO is a UL-listed panic exit device designed for single and double doors with mullion. Built to ANSI A156.3:2014 Grade 1 standards, it provides reliable emergency egress for commercial facilities, schools, hospitals and other high-traffic buildings. The grooved case mechanism and deadlocking latchbolt ensure security and compliance with life safety codes.
This rim-mounted device fits door sizes from 2 feet 4 inches to 4 feet and installs on both wood and metal doors using included sex bolts. Available options include electric latch retraction, monitor switches, dogging controls, and alarm kits to customize functionality for your facility. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert guidance on configuration, installation and keying to ensure proper life safety compliance.
Specifications
- Grade: ANSI A156.3:2014 Grade 1
- Device Type: Rim-mounted panic exit device
- Finish: 26D Satin Chrome
- Latchbolt: Deadlocking, 3/4 inch throw
- Door Sizes: 2 feet 4 inches to 4 feet (711mm to 1219mm)
- Center Case Dimensions: 8 3/16 inches x 2 13/32 inches x 1 9/16 inches
- Mechanism Case Dimensions: 2 1/4 inches x 2 1/4 inches
- Device Centerline Height: 39 13/16 inches from finished floor
- Pushbar Projection: 3 13/16 inches neutral, 3 1/16 inches depressed
- Dogging: Hex key dogging standard
- Non-handed except with SS signal switch option
- Strike: 1439 Dull Black included
