Description

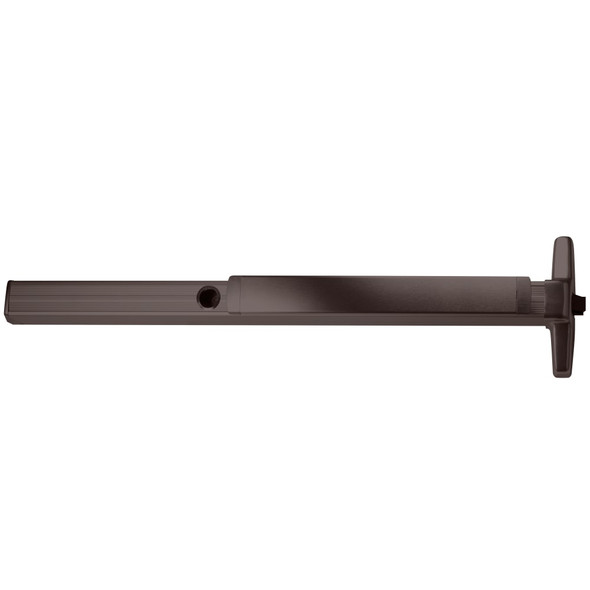

The Von Duprin CD33AEO 4 US28 is a Grade 1 panic exit device designed for single and double doors with mullions. UL listed and ANSI A156.3:2014 compliant, it features a grooved mechanism case, deadlocking latch bolt, and hex key dogging standard. Ideal for commercial facilities requiring reliable emergency egress hardware.
Compatible with door sizes 3'2" to 3' and 4'2" to 4', this rim device accepts optional electric latch retraction, monitor switches, signal switches, and alarm kits. Install on wood or metal doors using provided sex bolts. As an authorized Von Duprin dealer, E.D. Locks offers expert configuration assistance and competitive pricing. Contact sales@edlocks.com or call 1-877-207-6067 for application guidance.
Specifications
- Model: CD33AEO 4 US28
- Grade: ANSI A156.3:2014 Grade 1
- Device Type: Rim panic exit device, non-handed
- Case Style: Grooved mechanism case
- Latch Bolt: Deadlocking, 3/4" throw
- Dogging: Hex key standard; CD cylinder or LD options available
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Mechanism Case: 2 1/4" x 2 1/4"
- Pushbar Projection: 3 13/16" (neutral), 3 1/16" (depressed)
- Centerline Height: 39 13/16" from finished floor
- Compatible Door Sizes: 3'2" to 3' (711-914mm), 4'2" to 4' (864-1219mm)
- Fasteners: Sex bolts, 1 3/4" to 2 1/4"
- Strike: 1439 Dull Black
- Electric Options: LX latchbolt monitor, RX/RX2 pushpad monitor, SS signal switch, EL electric latch retraction, ALK alarm exit kit
- Additional Options: PN pneumatic latch retraction, GBK glass bead kit
- UL Listed for panic hardware
