Description

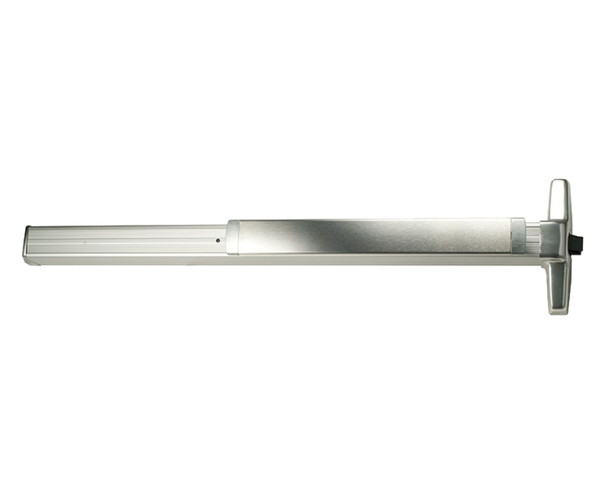

The Von Duprin CD33ANL 3 is a UL-listed panic exit device designed for single and double doors with mullion. Grade 1 certified to ANSI A156.3, it delivers reliable emergency egress for commercial facilities, retail spaces, and institutions requiring code-compliant life safety hardware.
This rim-mounted device fits door sizes 2'4" to 3' and accepts optional electric latch retraction, monitor switches, and alarm kits for integrated security. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance and free shipping on orders over $450. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right options for your application.
Specifications
- Brand: Von Duprin
- Model: CD33ANL 3 US28 RHR
- Grade: 1 (ANSI A156.3 2014)
- Door Sizes: 2'4" to 3' (711mm to 914mm)
- Finish: US28 (Satin Stainless Steel)
- Latch Bolt: Deadlocking, 3/4" throw
- Centerline Height: 39 13/16" from finished floor
- Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Dogging: Hex key standard
- UL Listed for panic exit hardware
