Description

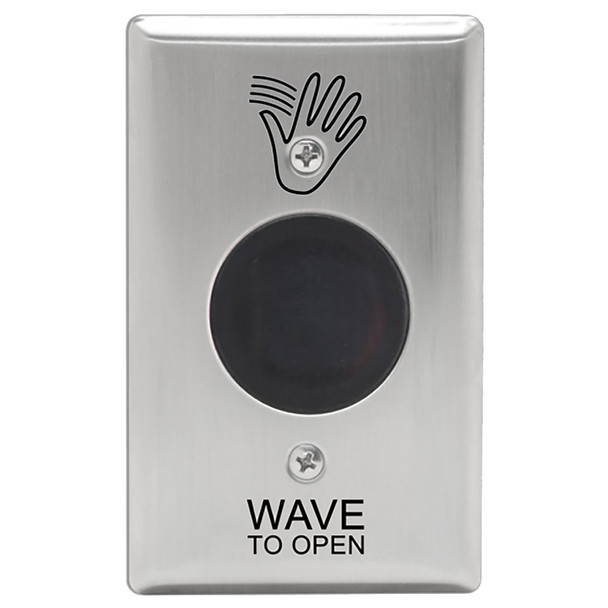

The Camden CM-332/41S is a second-generation, hands-free infrared switch designed for automatic door and access control applications in new and retrofit installations. This active infrared sensor uses microburst technology to provide reliable door activation, solving the need for contactless entry in high-traffic facilities, healthcare settings, and ADA-compliant environments.
The CM-332/41S operates on 12-24V AC/DC power and features dual SPDT Form C contacts rated at 3 Amps @ 30V, with adjustable operating range from 1 to 28 inches. It supports wired and optional wireless connectivity via 915 MHz Lazerpoint RF Spread Spectrum. Installation is straightforward in any application, and as an authorized Camden dealer, E.D. Locks provides expert configuration support at sales@edlocks.com or 1-877-207-6067 to ensure optimal performance.
Specifications
- Technology: Active Infrared with Microburst Sensing
- Voltage: 12-24V AC/DC
- Contacts: 2 SPDT Form C
- Contact Rating: 3 Amps @ 30V
- Current Draw: 40 mA
- Operating Range: 1-28 inches
- Time Delay: 3-30 Seconds (adjustable)
- Operating Modes: Event, Sequence, Security, Toggle
- Wireless: Optional Plug-In (915 MHz)
- Motion Sensing: Momentary, Momentary with Alarm, Maintained
- Fail Safe/Fail Secure: Selectable
