Description

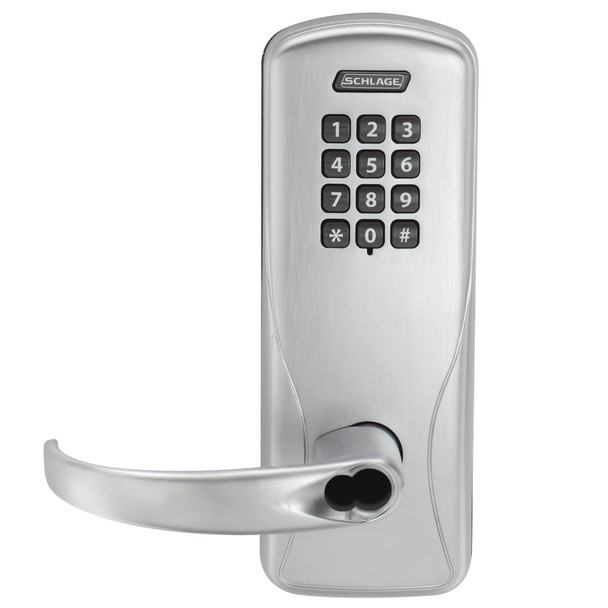

The Schlage Electronics CO100CY70 is a standalone, manually programmable electric cylindrical lock designed for facilities seeking electronic access control without network infrastructure. Ideal for educational institutions, offices, and storage areas, it replaces mechanical keys with unique PIN codes for each user, reducing key duplication risks and simplifying access management.
This lock supports multiple reader options including proximity, magnetic stripe, and keypad-only configurations, with capacity for up to 2,000 users. Compatible with Schlage Utility Software and Android devices for programming. As an authorized E.D. Locks dealer, we provide expert consultation on installation, keying options, and system setup. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Model: CO100CY70
- Type: Cylindrical mortise deadbolt
- Finish: Satin Chrome (626)
- Functions: 70 Classroom/Storeroom, 50 Office, 40 Privacy
- User Capacity: Up to 2,000 users
- Battery: 4 AA batteries, up to 2 years life
- Operating Temperature: -31 to 151°F exterior, 32 to 120°F interior
- Humidity: 0-100% non-condensing
- Keyway: Schlage 6-pin Everest 29 S123
- Reader Options: Proximity (125 kHz), magnetic stripe, keypad, or combinations
