Description

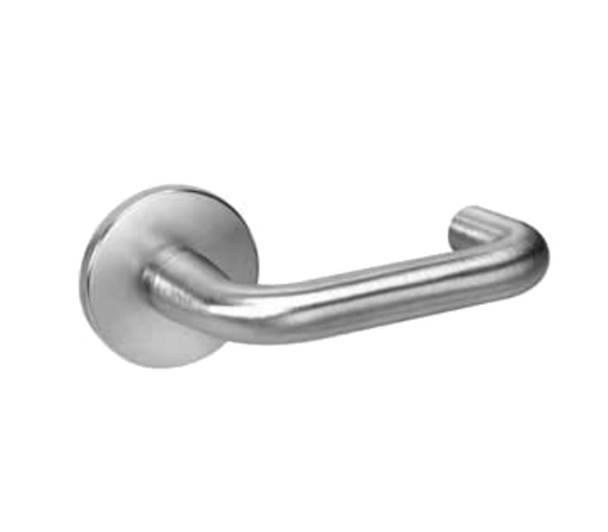

The Yale 8800 Series mortise lock is a Grade 1 commercial-duty lock engineered for uncompromising strength in institutional and commercial applications. It features a reinforced stainless steel deadbolt, heavy-duty vandal-resistant trim, and field-reversible handing to simplify installation on doors up to 3.25 inches thick. This lock solves the security and durability demands of high-traffic facilities.
Compatible with standard 1.75-inch doors and reversible strikes, the CRR8860-2FL accepts 6-pin cylinders (7-pin available to order) and includes two keys. UL/cUL fire-rated for up to 3 hours and ANSI/BHMA A156.13 Grade 1 certified with a 10-year mechanical warranty. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for handing verification, finish selection from 17 options, and expert installation support.
Specifications
- ANSI/BHMA Certification: A156.13, Series 1000, Grade 1
- UL/cUL Fire Rating: Up to 3 hours
- Backset: 2-3/4 inch
- Latchbolt: 3/4 inch stainless steel throw
- Door Thickness: 1-3/4 inch standard (to 3-1/4 inch available)
- Cylinders: Brass, 6-pin keyed-random with two keys (7-pin available)
- Front: Bevel front, free-floating (flat to 1/8 inch standard bevel)
- Strikes: 1-1/4 inch curved lip for 1-3/4 inch door, reversible
- Field Reversible: Yes
- Warranty: 10 years mechanical
- Finishes: 17 options available
