Description

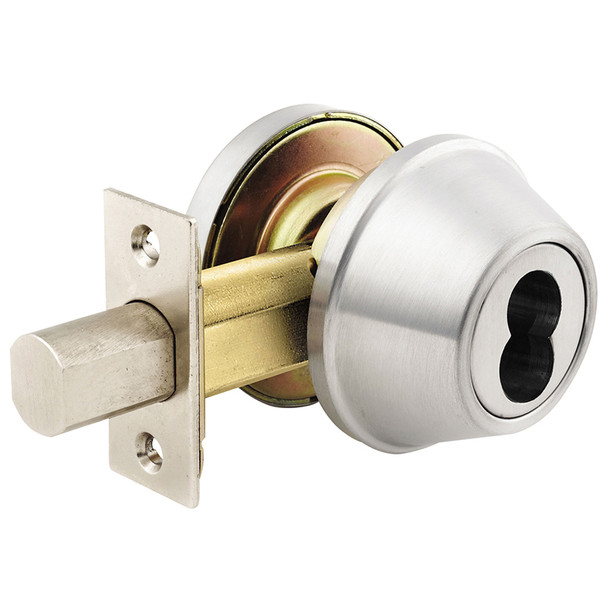

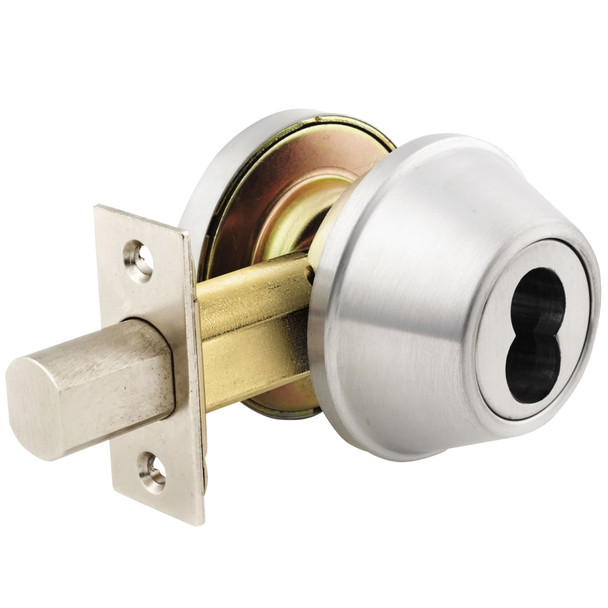

The Arrow D71-IC1 26D is a Grade 1 extra heavy-duty deadlock engineered for industrial, institutional, and commercial applications where security is critical. Its two-piece housing with free-spinning outer ring resists wrenching attacks, while a solid steel deadbolt with 1" throw and hardened steel pin provides maximum security under extreme conditions.
This deadlock fits standard doors 1-3/8" to 1-3/4" thick and is available in 2-3/8" or 2-3/4" backsets. All functions are reversible for flexible installation. Supplied with wood frame strike and BX91D reinforcement, plus two nickel silver keys. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keyway options, interchangeable core compatibility, and installation guidance.
Specifications
- Brand: Arrow
- Model: D71-IC1 26D
- Grade: 1 (Extra Heavy Duty)
- Deadbolt Throw: 1" (25.40mm)
- Backset Options: 2-3/8" (60.32mm) or 2-3/4" (69.85mm)
- Door Thickness: 1-3/8" to 1-3/4"
- Housing: Two-piece with free-spinning outer ring
- Deadbolt: Solid steel with hardened steel pin and insert
- Cylinder: 6-pin solid brass, Arrow "A" keyway (standard)
- Cylinder Options: Accepts 6 or 7-pin interchangeable cores (Best or Falcon type)
- Keys Included: Two nickel silver keys
- Handing: Reversible for all functions
- Mounting Screws: Concealed on double cylinder functions
- Strike: #346 wood frame strike and BX91D reinforcement (standard)
- Keyway Options: Schlage CS and competitive keyways available
