Description

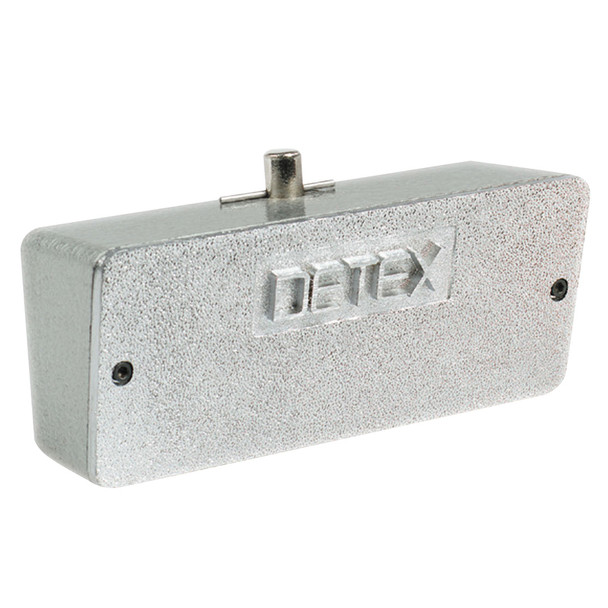

Installation InstructionsThe DDH-2250 Double Door Holder is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door. Release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.
Benefits
- Enables the Detex Exit Control Locks to be used with any wood, metal or glass double outswinging exit door
- Case hardened steel locking bolt
- Interchangeable pin
- Stainless steel spring providing instant release of lock bolt Features Benefits The DDH-2250, Double Door Holder, is designed for use with Detex Exit Control Locks to provide locking of the inactive leaf on an outswinging double door. Release of the active leaf disengages the DDH-2250 allowing the inactive leaf to open freely.
- Flexibility for mounting on either the left or right door
- Simple, easy operation - no mortise required
- Pushing the exit control lock opens the active leaf and automatically disengages the DDH-2250, providing instant emergency exit with both doors
Specifications
- Case hardened steel locking bolt
- Stainless steel spring providing instant release of lock bolt
- Cast housing of 3/16" durable zinc alloy
- 1/4" thick face plate
- Mounting kit contains, screws, allen wrench, strike plate, door protection plate and templates
- Dimensions: 7 1/8" long x 2 1/4" deep x 2 7/8" high
- 3 Year Limited Manufacturers Warranty
