Description

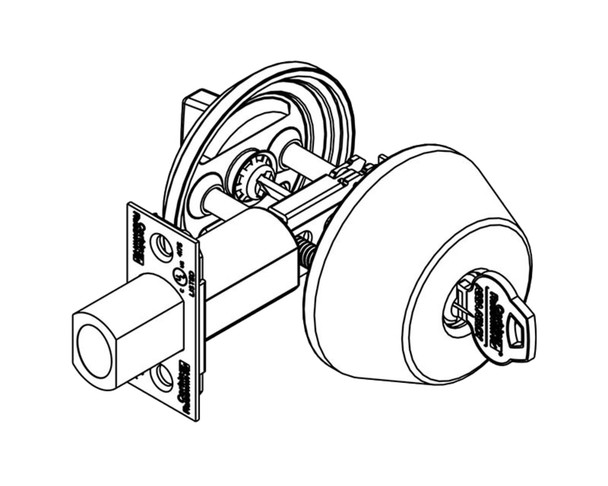

The Corbin Russwin DL2211 is a Grade 2 cylindrical deadlock built for reliable security on commercial and residential doors. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a full 1 inch throw. Ideal for applications requiring ANSI 156.5 Grade 2 certification, this non-handed lock installs easily on standard 1-3/4 inch doors.
Compatible with standard 2-3/4 inch backset and brass or stainless steel fronts, the DL2211 accepts optional master keying and security cylinders for customized access control. As an authorized Corbin Russwin dealer, E.D. Locks provides expert support and keying guidance. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for specification assistance or to discuss your security needs.
Specifications
- Brand: Corbin Russwin
- Model: DL2211
- Finish: 605 (Brass)
- Security Grade: ANSI 156.5 Grade 2
- Deadbolt Throw: 1 inch
- Standard Door Thickness: 1-3/4 inch (44mm)
- Standard Backset: 2-3/4 inch (70mm); Optional: 2-3/8 inch (60mm)
- Front Dimensions: 2-1/4 inch (57mm) x 1-1/8 inch (29mm)
- Strike: 2-3/4 inch (70mm) x 1-1/8 inch (29mm)
- Cylinder: 6-pin, L4 keyway, brass, 0-bitted
- Handing: Non-handed
- Keys Included: Two nickel silver
- Warranty: One-year limited
