Description

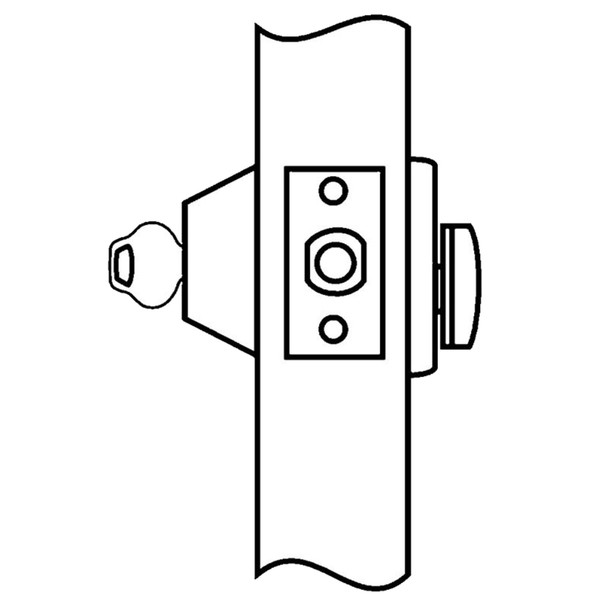

The Corbin Russwin DL2213 606 CL7 is a Grade 2 cylindrical deadlock built for reliable security on doors up to 1-3/4" thick. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and 1" throw, making it ideal for commercial and institutional applications requiring durable, easy-to-install access control.
This non-handed lock accepts standard 2-3/4" backset and brass or stainless steel front, with optional configurations available. It ships with two nickel silver keys and supports master keying and security cylinder upgrades. As an authorized Corbin Russwin dealer, E.D. Locks provides expert guidance on handing, keying options, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for technical support and volume pricing.
Specifications
- Brand: Corbin Russwin
- Model: DL2213 606 CL7
- Grade: 2 (ANSI 156.5)
- Deadbolt: 1" throw, solid steel with hardened free-spinning steel pin insert
- Door Thickness: 1-3/4" standard (44mm); optional thicknesses available
- Backset: 2-3/4" standard (70mm); optional 2-3/8" (60mm)
- Front: 2-1/4" x 1-1/8" brass or stainless steel standard; optional 1" width
- Strike: 2-3/4" x 1-1/8" standard; optional strikes and wrought boxes available
- Cylinder: 6-pin, L4 keyway, 0-bitted brass standard; security cylinder optional
- Handing: Non-handed
- Keys Included: Two nickel silver
- Keying Features: Master keying, construction master keying, security, visual key control, concealed key control available
- Warranty: One-year limited
