Description

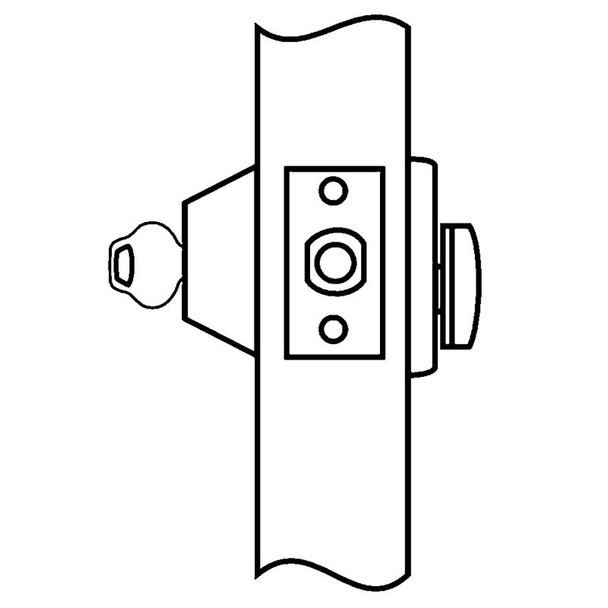

The Corbin Russwin DL2213 is a Grade 2 cylindrical deadlock built for commercial and institutional doors requiring reliable, affordable security. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, it suits a wide variety of applications where code compliance and durability matter.
Standard 1-3/4-inch door thickness, 2-3/4-inch backset, and non-handed design simplify inventory and installation. Ships keyed to your specified bitting; master keying and construction keying available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and ongoing support—contact sales@edlocks.com or 1-877-207-6067 to confirm your door prep and keying needs.
Specifications
- Grade: 2 (ANSI/BHMA 156.5)
- Deadbolt: 1 inch throw, solid steel with hardened free-spinning pin insert
- Door Thickness: 1-3/4 inches standard; optional thicknesses available
- Backset: 2-3/4 inches standard; 2-3/8 inches optional
- Front Plate: 2-1/4 inches x 1-1/8 inches (brass or stainless steel standard); 1 inch width optional
- Cylinder: 6-pin, L4 keyway, 0-bitted; security cylinder optional
- Strike: 2-3/4 inches x 1-1/8 inches standard; optional strikes and boxes available
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying Options: Master keying, construction master keying, security, visual key control, concealed key control
- Warranty: One-year limited
