Description

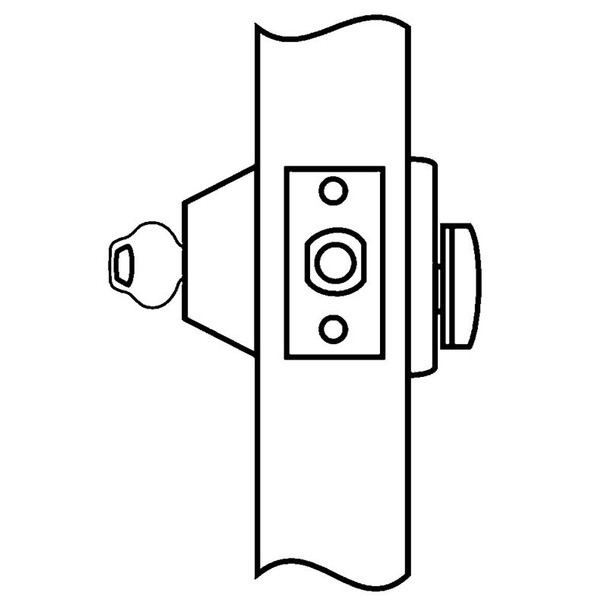

The Corbin Russwin DL2213 is a Grade 2 cylindrical deadlock built for commercial and institutional doors requiring reliable, code-compliant security. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1-inch throw, it solves the need for durable, easy-to-install access control on standard 1-3/4-inch doors.
This non-handed lock fits 2-3/4-inch backset applications and ships with two nickel silver keys and brass or stainless steel fronts. It supports master keying and construction master keying options for multi-door facilities. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and keying support at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade: 2 (ANSI 156.5 certified)
- Deadbolt: 1 inch throw, solid steel with hardened, free-spinning steel pin insert
- Door Thickness: Standard 1-3/4 inch (44mm); optional thicknesses available
- Backset: Standard 2-3/4 inch (70mm); optional 2-3/8 inch (60mm)
- Front: 2-1/4 inch (57mm) x 1-1/8 inch (29mm) brass or stainless steel; optional 1 inch width
- Strike: Standard 2-3/4 inch (70mm) x 1-1/8 inch (29mm)
- Cylinder: 6-pin, L4 keyway, 0-bitted brass; security cylinder optional
- Keys: Two nickel silver standard
- Handing: Non-handed
- Keying Options: Master keying, construction master keying, security, visual key control, concealed key control
- Warranty: One-year limited
