Description

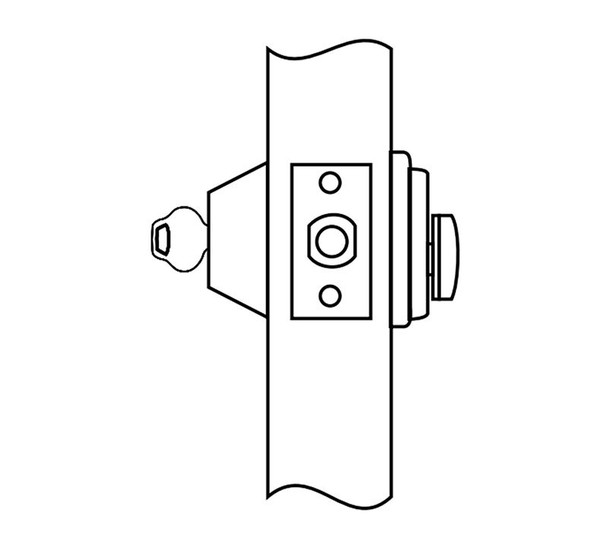

The Corbin Russwin DL2217 606 CL7 is a Grade 2 cylindrical deadlock built for commercial and institutional doors. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1 inch throw, it delivers reliable security for standard 1 3/4 inch door thickness installations. Ideal for offices, schools, and facilities requiring ANSI 156.5 certified performance.
This non-handed lock fits standard 2 3/4 inch backset and ships with brass front plate, strike, and two nickel silver keys. Master keying and security cylinder options are available. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for keying assistance or custom specifications.
Specifications
- Grade: ANSI 156.5 Grade 2
- Deadbolt: 1 inch throw, solid steel with hardened free-spinning steel pin insert
- Door Thickness: Standard 1 3/4 inch (44mm); optional thicknesses available
- Backset: Standard 2 3/4 inch (70mm); optional 2 3/8 inch (60mm)
- Front Plate: Brass or stainless steel, 2 1/4 inch (57mm) x 1 1/8 inch (29mm); optional 1 inch width
- Cylinder: 6-pin brass, L4 keyway, 0-bitted; security cylinder optional
- Strike: Standard 2 3/4 inch (70mm) x 1 1/8 inch (29mm)
- Handing: Non-handed
- Keys: Two nickel silver
- Keying Options: Master keying, construction master keying, security, visual key control, concealed key control
- Warranty: One-year limited
