Description

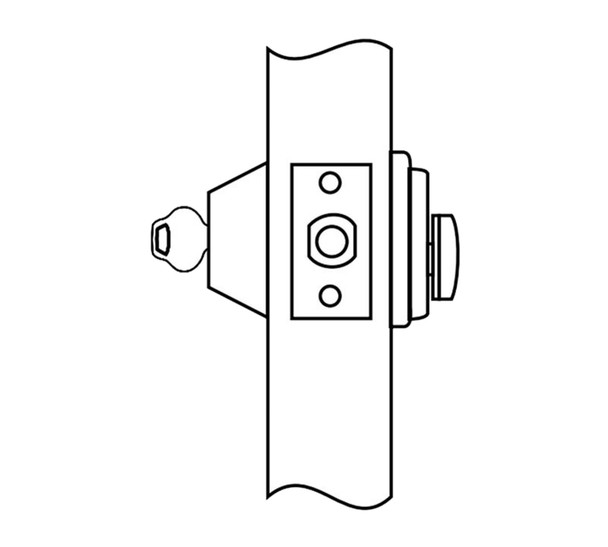

The Corbin Russwin DL2217 is a Grade 2 certified cylindrical deadlock designed for commercial and institutional doors requiring reliable security. It features a solid steel deadbolt with a hardened, free-spinning steel pin insert and 1-inch throw, making it ideal for office buildings, schools, hospitals, and multi-tenant facilities where ease of installation and proven performance matter.
This non-handed lock installs in standard 1-3/4-inch doors with a 2-3/4-inch backset and brass or stainless steel front. It accommodates optional door thicknesses, backsets, and security cylinders. As an authorized Corbin Russwin dealer, E.D. Locks provides expert guidance on keying options, master key systems, and proper installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right configuration for your project.
Specifications
- Grade: 2 (ANSI/BHMA 156.5 certified)
- Deadbolt throw: 1 inch, solid steel with hardened free-spinning pin insert
- Door thickness: Standard 1-3/4 inch (44mm); optional sizes available
- Backset: Standard 2-3/4 inch (70mm); optional 2-3/8 inch (60mm)
- Front: Standard brass or stainless steel, 2-1/4 inch x 1-1/8 inch
- Cylinder: 6-pin, L4 keyway, brass standard; security cylinder optional
- Handing: Non-handed
- Strike: Standard 2-3/4 inch x 1-1/8 inch
- Keys: Two nickel silver included
- Keying options: Master keying, construction master keying, security, visual key control, concealed key control
- Warranty: One-year limited
