Description

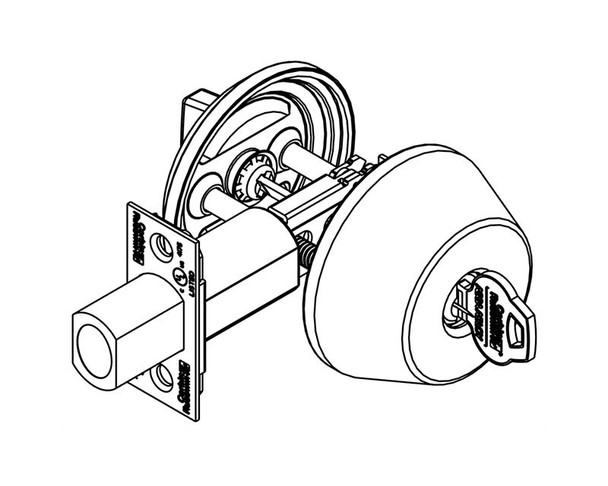

The Corbin Russwin DL3211 is a Grade 1 cylindrical deadlock built for high-security commercial and institutional applications. It features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, meeting ANSI/BHMA 156.5 Grade 1 certification. Ideal for exterior doors and high-traffic entries where maximum security is required.
This deadlock installs in standard 161 door prep and fits 1-3/4" door thickness as standard, with other thicknesses available. Choose from 2-3/4" or 2-3/8" backsets and optional pyramid cylinders. UL listed for fire-rated doors. Contact our authorized dealer experts at sales@edlocks.com or 1-877-207-6067 for keying options, compatibility verification, and installation support.
Specifications
- ANSI/BHMA 156.5 Grade 1 certified
- Solid steel deadbolt with hardened, free-spinning steel pin insert
- 1" bolt throw
- 1-3/4" door thickness standard (additional thicknesses available)
- Backset options: 2-3/4" or 2-3/8"
- Standard 161 door prep
- Pyramid cylinders optional
- UL listed for fire-rated doors
