Description

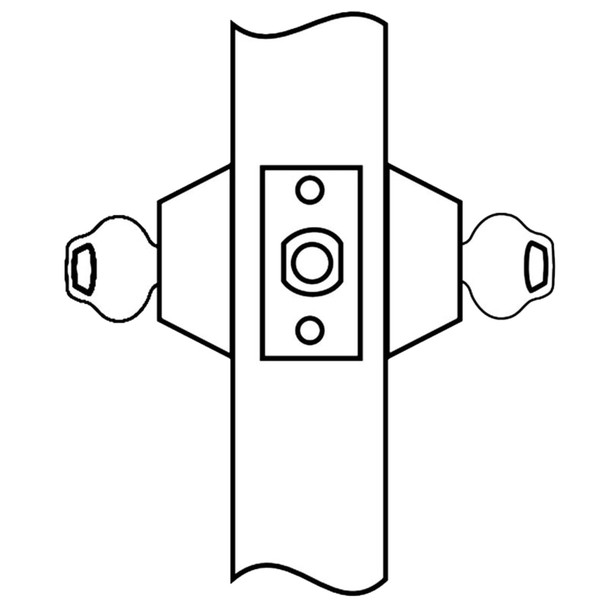

The Corbin Russwin DL3212 is a Grade 1 cylindrical deadlock built for high-security applications. It features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, ideal for commercial doors, offices, and facilities requiring robust access control and certified security performance.
Standard 1-3/4" door thickness with optional sizes available; ships with 2-3/4" backset, 6-pin brass cylinder, and standard strike. Compatible with master keying and security cylinders. As an authorized dealer, E.D. Locks provides expert configuration guidance and keying support. Contact sales@edlocks.com or call 1-877-207-6067 to discuss your security requirements.
Specifications
- Grade 1 certified to ANSI/BHMA 156.5
- Deadbolt: 1" throw, solid steel with hardened free-spinning pin insert
- Door Thickness: Standard 1-3/4" (44mm); optional sizes available
- Backset: Standard 2-3/4" (70mm); Optional 2-3/8" (60mm)
- Front: Brass or stainless steel, 2-1/4" x 1-1/8" (standard); 1" width optional
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard; security cylinder optional
- Strike: Standard 2-3/4" x 1-1/8"; optional strikes available
- Handing: Non-handed
- Keys: Two nickel silver standard
- Keying: Master keying, construction master keying, security, and concealed key control available
- UL listed for fire-rated doors
- Warranty: One-year limited
