Description

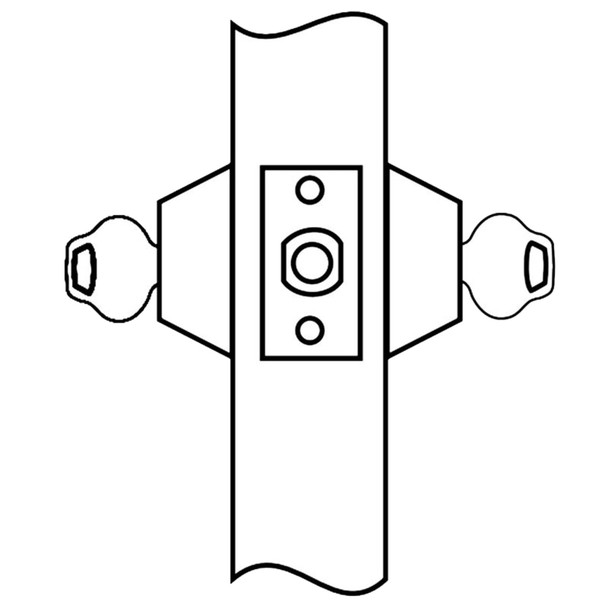

The Corbin Russwin DL3212 is a Grade 1 cylindrical deadlock engineered for high-security applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, it delivers reliable security for commercial and institutional doors. Ideal for facilities requiring ANSI 156.5 Grade 1 certification and fire-rated door compatibility.
This deadlock installs in standard 161 door prep and accommodates 1-3/4" door thickness as standard, with additional thicknesses available. Choose from 2-3/4" or 2-3/8" backsets and optional pyramid cylinders. As an authorized Corbin Russwin dealer, E.D. Locks provides expert guidance on keying, installation, and compliance. Contact sales@edlocks.com or call 1-877-207-6067 for technical support.
Specifications
- Deadbolt: Solid steel with hardened, free-spinning steel pin insert
- Throw: 1 inch
- Security Rating: ANSI 156.5 Grade 1
- Door Thickness: 1-3/4" standard; additional thicknesses available
- Backset Options: 2-3/4" or 2-3/8"
- Door Prep: Standard 161
- Cylinder: Standard or optional pyramid
- UL Listed: Fire-rated door compatible
