Description

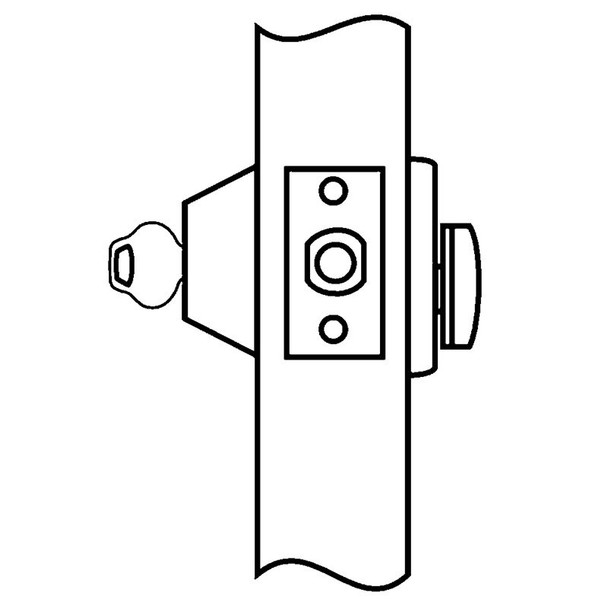

The Corbin Russwin DL3213 613 is a Grade 1 cylindrical deadlock engineered for demanding commercial and institutional applications. This heavy-duty lock features a solid steel deadbolt with a hardened, free-spinning steel pin insert and a 1-inch throw, meeting ANSI 156.5 Grade 1 standards. Ideal for entry doors, interior rooms, and areas requiring maximum security and reliability.
The DL3213 installs into standard 161 door prep and accommodates 1-3/4-inch door thickness with optional sizes available. It ships with a standard 2-3/4-inch backset, brass front, and 6-pin L4 cylinder, and is UL-listed for fire-rated doors. E.D. Locks is an authorized Corbin Russwin dealer offering expert guidance on keying options, master keying, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right configuration.
Specifications
- Brand: Corbin Russwin
- Model: DL3213 613
- ANSI Rating: 156.5 Grade 1
- Deadbolt Throw: 1 inch
- Standard Door Thickness: 1-3/4 inch (44mm)
- Standard Backset: 2-3/4 inch (70mm); Optional: 2-3/8 inch (60mm)
- Front Finish: Brass or Stainless Steel, 2-1/4 inch x 1-1/8 inch
- Cylinder: 6-pin, L4 keyway, 0-bitted
- Handing: Non-handed
- UL Listed: Fire Rated doors
- Keying: Two nickel silver keys standard; master keying available
- Warranty: One-year limited
