Description

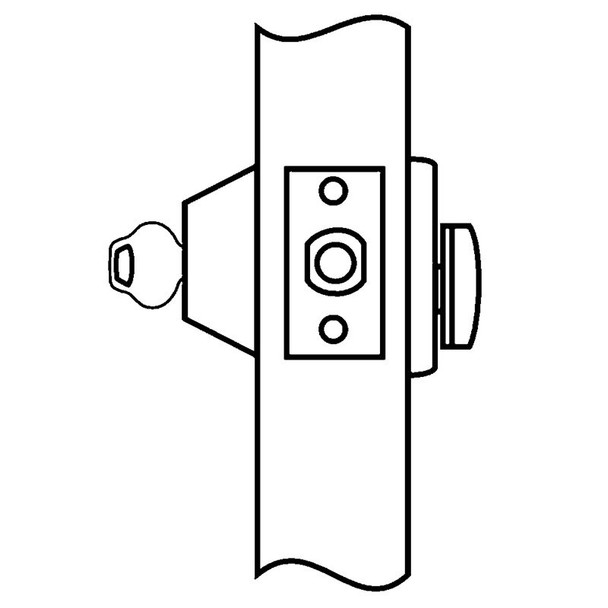

The Corbin Russwin DL3213 is a Grade 1 cylindrical deadlock engineered for high-security commercial and institutional applications. It features a solid steel deadbolt with hardened, free-spinning steel pin insert and 1 inch throw, meeting ANSI 156.5 Grade 1 certification for maximum durability and tamper resistance.
This deadlock accommodates standard 1-3/4 inch door thickness with optional thicknesses available, and comes in 2-3/4 inch or 2-3/8 inch backsets with standard 161 door prep. UL listed for fire-rated doors. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for keying options, cylinder selection, and professional installation guidance as an authorized Corbin Russwin dealer.
Specifications
- Grade: 1 (ANSI 156.5)
- Deadbolt: Solid steel with hardened, free-spinning steel pin insert
- Throw: 1 inch
- Door Thickness: 1-3/4 inch standard; additional thicknesses available
- Backsets: 2-3/4 inch or 2-3/8 inch
- Door Prep: Standard 161
- Cylinder Options: Standard or Pyramid cylinders available
- UL Listed: For use with fire-rated doors
