Description

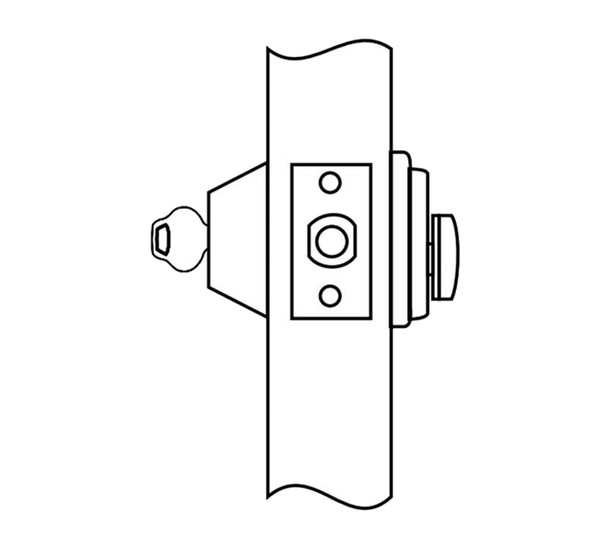

The Corbin Russwin DL3217 606 CL7 is a Grade 1 cylindrical deadlock built for high-security commercial and institutional applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, it delivers reliable access control and keying flexibility for facilities requiring master key systems and visual key control.
Standard 1-3/4" door thickness with optional sizes available; fits 2-3/4" or 2-3/8" backsets and standard 161 door prep. UL listed for fire-rated doors. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration and keying support. Contact sales@edlocks.com or 1-877-207-6067 to discuss master keying, cylinder options, and installation requirements.
Specifications
- Grade: 1 (156.5 certified)
- Door Thickness (Standard): 1-3/4" (44mm)
- Backset (Standard): 2-3/4" (70mm); Optional: 2-3/8" (60mm)
- Deadbolt Throw: 1"
- Front: Brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm)
- Cylinder: 6-pin, L4 keyway, brass, 0-bitted standard
- Strike: 2-3/4" (70mm) x 1-1/8" (29mm)
- Handing: Non-handed
- UL Listed: Fire-rated doors
- Keys: Two nickel silver
- Keying: Master keying, construction, security, and concealed key control available
- Warranty: One-year limited
