Description

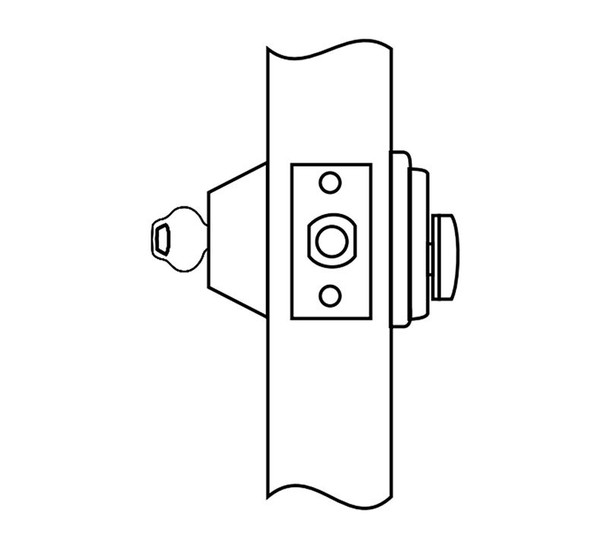

The Corbin Russwin DL3217 625 is a Grade 1 cylindrical deadlock built for high-security commercial and institutional applications. Featuring a solid steel deadbolt with hardened, free-spinning steel pin insert and 1" throw, it delivers reliable access control and durability for demanding environments where security standards matter.
Standard 1-3/4" door thickness with optional sizes available; ships with 2-3/4" backset, 6-pin brass cylinder, and standard brass or stainless steel front. Compatible with standard 161 door prep and UL listed for fire-rated doors. Master keying, security cylinders, and alternate strikes are available. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying setup, compatibility verification, and expert installation guidance.
Specifications
- Grade: 1 (ANSI/BHMA 156.5)
- Deadbolt: Solid steel, 1" throw, hardened free-spinning steel pin insert
- Door Thickness: Standard 1-3/4" (44mm); optional sizes available
- Backset: Standard 2-3/4" (70mm); optional 2-3/8" (60mm)
- Front: Brass or stainless steel, 2-1/4" x 1-1/8" (57mm x 29mm)
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted standard
- Strike: Standard 2-3/4" x 1-1/8" (70mm x 29mm)
- Handing: Non-handed
- Door Prep: Standard 161
- UL Listed: For use with fire-rated doors
- Keying: Two nickel silver keys standard; master keying available
- Warranty: One-year limited
