Description

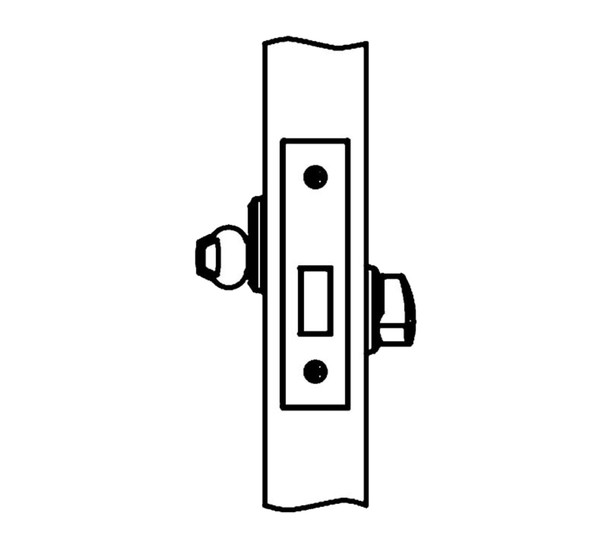

The Corbin Russwin DL4117 626 LC is a heavy-duty mortise deadbolt designed for commercial and institutional doors requiring reliable, non-handed security. Built with a wrought steel lockcase and hardened steel bolt with 1 inch throw, it solves the need for durable, keyed access control on standard 1-3/4 inch thick doors in high-traffic environments.
This mortise lock is compatible with standard door preparations and includes adjustable bevel compensation for flat or beveled doors. Available in multiple front finishes (brass, bronze, stainless steel) and keying options including master keying and interchangeable cores. As an authorized Corbin Russwin dealer, E.D. Locks provides expert configuration guidance and warranty support. Contact sales@edlocks.com or call 1-877-207-6067 for keying assistance.
Specifications
- Brand: Corbin Russwin
- Model: DL4117 626 LC
- Type: Mortise Deadbolt
- Handing: Non-handed
- Door Thickness: 1-3/4 inches (44mm) standard
- Backset: 2-3/4 inches (70mm)
- Lockcase: Heavy wrought steel, zinc dichromate finish
- Front Finishes: Brass, bronze, stainless steel
- Front Dimensions: 4-5/8 inches (117mm) x 1-1/8 inches (29mm)
- Deadbolt: Steel with hardened pin, 1 inch (25mm) throw
- Strike: Wrought brass or bronze, 3-1/2 inches (89mm) x 1-1/8 inches (29mm)
- Cylinder: 6-pin, L4 keyway, 0-bitted
- Bevel Adjustment: 1/8 inch (3mm) in 2 inches (51mm)
- Keys Included: Two nickel silver
- Keying Options: Master keying, construction master keying, 7-pin conventional, interchangeable core, security, visual key control, concealed key control, pyramid
- Warranty: One-year limited
