Description

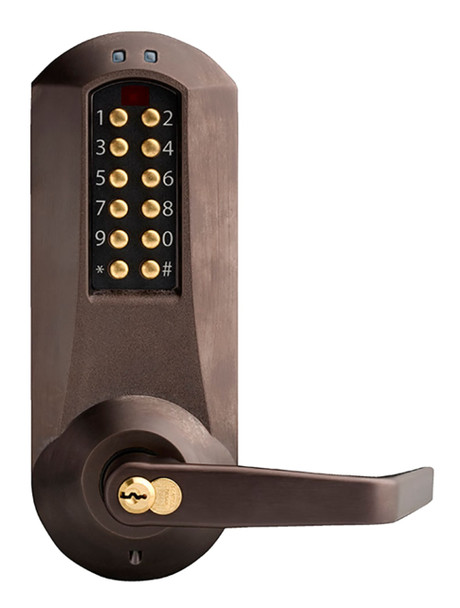

The DormaKaba E-Plex 5000 is an extra heavy-duty electronic mortise lock designed for high-security commercial and institutional applications. It features the Winston lever in dark bronze with brass accents and supports up to 100 access codes with 3,000 audit event capacity, making it ideal for facilities requiring robust access control and detailed activity tracking.
This non-handed mortise lock is pre-assembled for left-hand doors and easily field-adjustable for right-hand installations. It accommodates 6/7-pin SFIC core preparation (core sold separately) and offers flexible backset options of 2 3/4 inches. As an authorized DormaKaba dealer, E.D. Locks provides expert guidance on mortise prep compatibility and electronic keying setup. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for installation support.
Specifications
- Construction: Extra heavy-duty cylindrical lockset, solid cast housings and levers
- Mortise Backset: 2 3/4 inches (70 mm)
- Mortise Latch: 3/4 inch (19 mm) or 1 inch (25 mm) deadbolt (optional)
- Access Codes: Up to 100
- Audit Events: 3,000
- Core Prep: 6/7-Pin SFIC, less core
- Finish: Dark Bronze with Brass Accents
- Handing: Non-handed, field adjustable
