Description

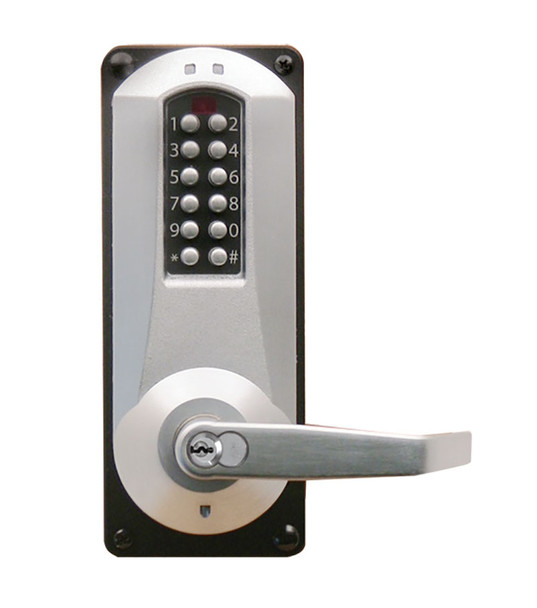

The DormaKaba E-Plex 5086 is an extra heavy-duty electronic mortise lock designed for high-security commercial entry and egress control on wood or metal doors. It accommodates up to 100 access codes and logs 3,000 audit events, making it ideal for offices, healthcare facilities, and secure buildings requiring detailed access tracking and flexible user management.
This non-handed lock installs with four bolts and requires no wiring, fitting standard doors 1 5/8" to 2 1/8" thick. It features a 6-pin LFIC prep for Corbin Russwin cores and carries ANSI/BHMA Grade 1 certification with a three-hour UL/ULC fire rating. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for core options, keying assistance, and expert installation guidance from an authorized DormaKaba dealer.
Specifications
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm)
- Minimum Stile Recommended: 5" (127 mm)
- Door Thickness: 1 3/4" (44 mm) to 2 1/4" (57 mm)
- Pre-assembled for doors: 1 5/8" (41 mm) to 2 1/8" (54 mm)
- Access Codes: 100
- Audit Events: 3,000
- Finish: Satin Chrome
- Key Prep: Corbin Russwin 6-pin LFIC
- Fire Rating: Three-hour UL/ULC for "A" labeled doors
- Certification: ANSI/BHMA A156.13, Grade 1
- Operating Temperature: -31°F (-35°C) to +151°F (66°C)
- Warranty: One year from installation
- Installation: Four bolt, no wiring required
- Door Handing: Non-handed, field-changeable
