Description

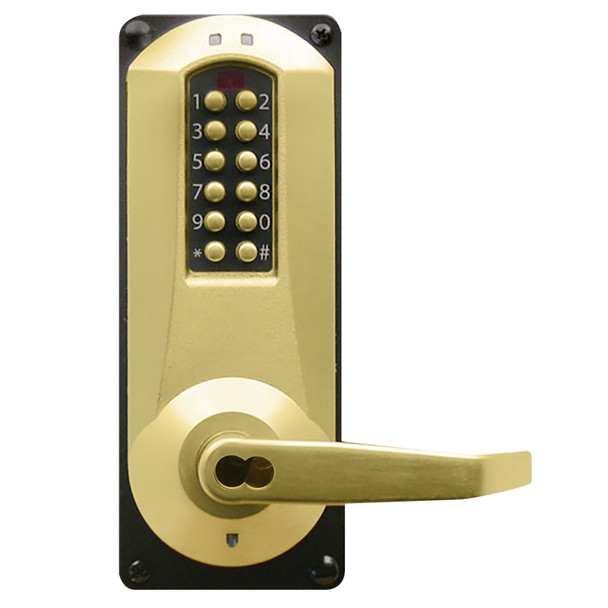

The DormaKaba E-Plex 5086 is an extra heavy-duty electronic mortise lock designed for high-security entry and egress control. Ideal for commercial facilities, healthcare, education, and government buildings, it solves the need for keyless access without sacrificing durability or ADA compliance. Supports 100 access codes and logs 3,000 audit events.
This non-handed mortise lockset installs on wood or metal doors without wiring and fits door thicknesses from 1 5/8" to 2 1/8". It accepts Medeco, Yale, ASSA, and ABLOY LFIC cores (sold separately) for flexible keying. As an authorized DormaKaba dealer, E.D. Locks offers expert configuration guidance and lifetime technical support. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right core and override options.
Specifications
- Brand: DormaKaba
- Model: E-Plex 5086
- Function: Entry/Egress, Back to Back
- Access Codes: 100
- Audit Events: 3,000
- Backset: 2 3/4" (70 mm)
- Latch: 3/4" (19 mm)
- Door Thickness: 1 5/8" to 2 1/8" (41 mm to 54 mm, pre-assembled)
- Minimum Stile: 5" (127 mm)
- Construction: Satin Brass, solid cast housings and levers
- Handing: Non-handed, field-changeable
- Installation: Four-bolt, no wiring required
- LFIC Prep: Medeco, Yale, ASSA, ABLOY compatible (core not included)
- Fire Rating: Three-hour UL/ULC for "A" labeled doors
- Environmental: Indoor/Outdoor, -31°F to +151°F
- Durability: ANSI/BHMA A156.13, Grade 1
- ADA Compliant: Yes
- Warranty: One year from installation
