Description

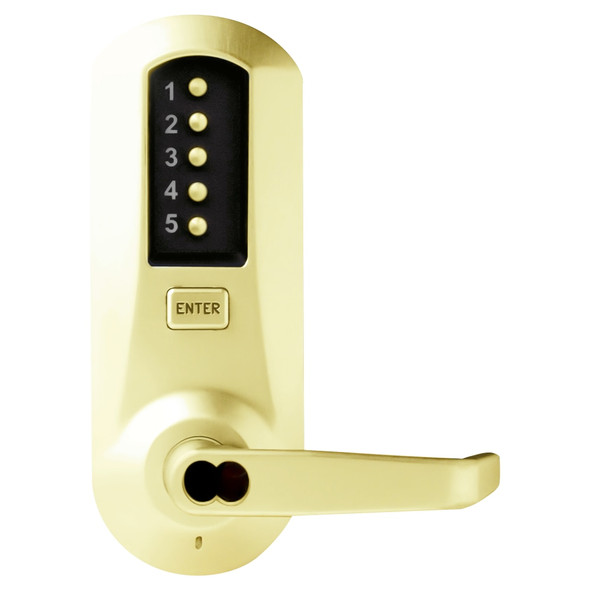

The DormaKaba EE1021C is a heavy-duty cylindrical lock designed for commercial entry doors requiring both keypad access and key override capability. Its vandal-resistant numeric keypad and cast metal construction make it ideal for schools, offices, and facilities needing reliable combination or key entry on left-hand doors.
This lock is factory-handed for left-hand doors and field-reversible, fitting standard ASA 161 door preparation on doors 1¾" to 2¼" thick. It accepts Corbin Russwin 6-pin LFIC cores (sold separately). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying assistance, handing confirmation, and expert installation guidance to ensure optimal security performance.
Specifications
- Brand: DormaKaba
- Model: EE1021C
- Lock Type: Cylindrical with numeric keypad
- Entry Function: Combination or key override
- Exit Function: Combination or key override
- Backset: 2-3/4" (70 mm)
- Latch Throw: 1/2" (13 mm) standard
- Core Prep: Corbin Russwin 6-pin LFIC
- Core: Less core (sold separately)
- Finish: Bright brass
- Door Handing: Left-hand, field reversible
- Door Thickness: 1-3/4" to 2-1/4" (44 mm to 57 mm)
- Door Preparation: ASA 161
- Strike: Standard strike plate, ASA strike plate available
- Minimum Stile Width: 5" (127 mm)
- Weight: 10.25 lbs. (4.6 kg)
- Construction: Cast front and back housings, cast knobs
- Keypad: Vandal-resistant solid metal pushbuttons
