Description

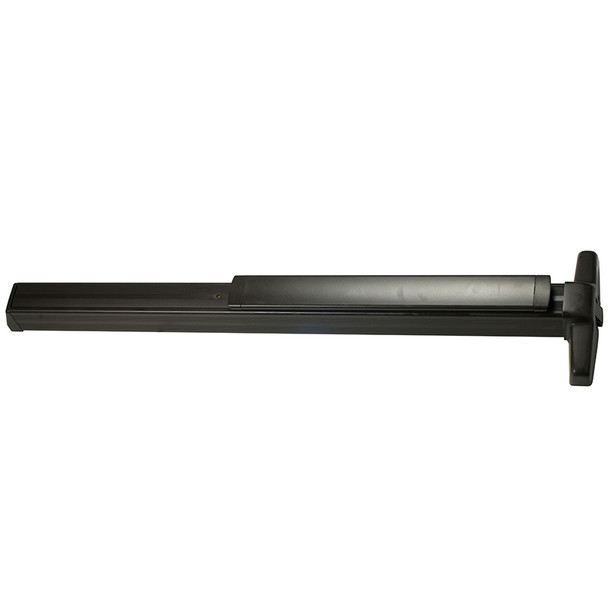

The Von Duprin EL33AEO 3 313 is a Grade 1 panic exit device engineered for single and double doors with mullion support. UL listed and ANSI A156.3-2014 compliant, it solves life-safety code requirements for commercial facilities while delivering reliable emergency egress in high-traffic environments.
Compatible with wood and metal doors, this rim-mounted device installs at 39 13/16 inches from finished floor and includes hex-key dogging as standard. Choose from electric latch retraction, monitor switches, and alarm kits to match your access control system. As an authorized Von Duprin dealer, E.D. Locks provides expert configuration guidance at sales@edlocks.com or 1-877-207-6067.
Specifications
- Grade 1 (ANSI A156.3-2014)
- UL Listed Panic Hardware
- Non-handed (except with SS option)
- Device Lengths: 2'4" to 3' (711-914mm) and 2'10" to 4' (864-1219mm)
- Latch Bolt: Deadlocking, 3/4" throw
- Centerline Height: 39 13/16" (1011mm)
- Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Dogging: Hex key standard; CD and LD options available
- Electric Options: LX, RX, RX2, SS, EL, ALK available
- Strikes: 1439 Dull Black
- Sex Bolts: 1 3/4" to 2 1/4" for wood and metal doors
