Description

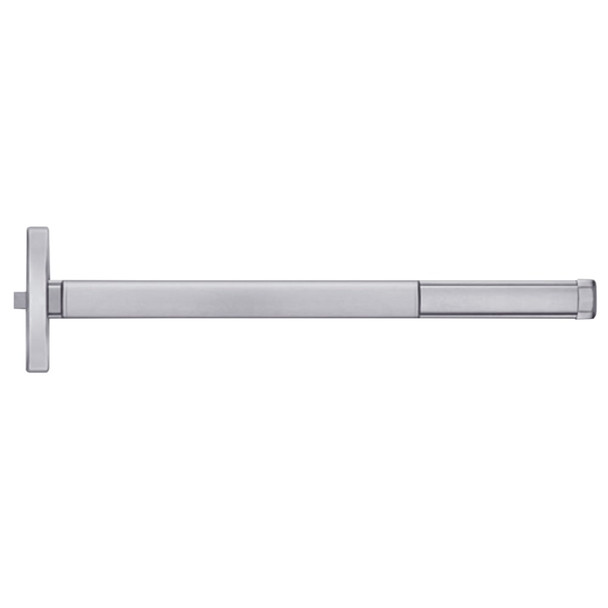

ELRTSFL2403 628 36 Precision Hardware Inc (PHI) Exit Device
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nationÃÂs largest healthcare and educational facilities prefer the Apex for itÃÂs aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
- FUNCTIONS - A universal exit device. Add trim for desired function.
- BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
- CHASSIS - Investment cast steel, zinc dichromated.
- LATCHBOLT - Stainless steel, deadlocking, 3/4" throw.
- STRIKES - No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
- DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
- TOUCHBAR HEIGHT - 39-15/16" from floor standard. May be varied as situation dictates.
- UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
